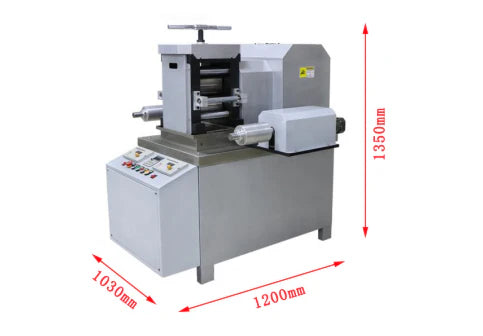

Pressa a rulli per impieghi gravosi (180 L x 142 P, mm) con velocità variabile - MSK-1814-RR

MSK-1418-R2R is a roll to roll heavy-duty electric rolling press with 180 mm width x 142mm diameter for the metallic materials, such as Tiny Copper, stainless steel, Nickel alloy, etc.

SPECIFICATIONS:

Power / AC Converter	Input Voltage: 208- 240VAC Three Phase, 50/60Hz  5.5KW Three Phase Motor (7.5 horsepower)
Rollers	Roller materials: Hardening Cr12MoV  Roller size: 142 mm dia. x 180 mm width (~ 5.6" Dia x 7" width) Hardness: HRC 60-62 Rolling thickness: 0.02 - 28 mm adjustable  Gap accuracy: +/- 0.05 mm
Rolling Thickness ( Min.)	Min. thickness is dependent on the materials. The below is based on our experience: Ag: 0.06 mm Au: 0.04 mm Sn: 0.02 mm Cu: 0.06 mm
Rolling Speed	0 - 18 rpm adjustable via Frequency control with constant output power Roll to roll is controlled by synchronous magnetic powder clutch
Lubrication	The recirculating oil pump is built-in for lubricating bears and gears
Compliance	CE Certified NRTL certification is available upon request at the extra cost
Application Note	Never roll materials with hardness > 50HRC The thickness of each time pressing is depending on material thickness. The harder material shall be less press thickness, which customer shall test by themselves for the best parameters For some material which is easy work hardening, you may need to anneal it by furnace after each rolling. Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)
