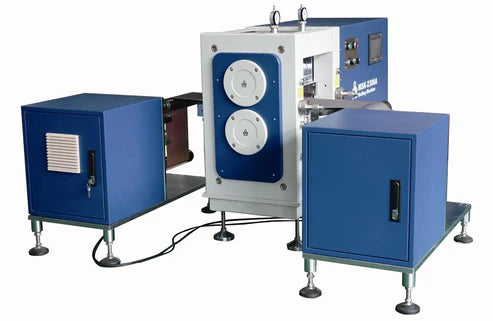

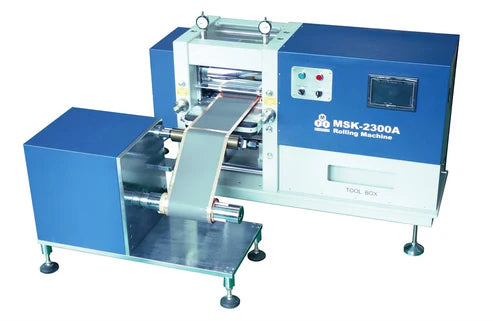

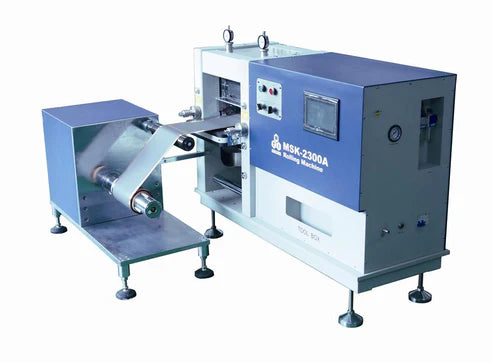

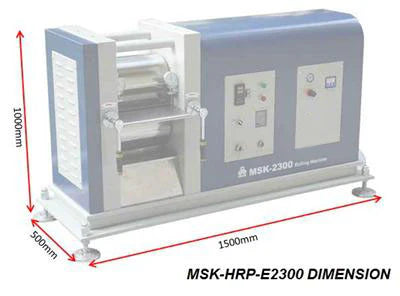

Pressa a rulli a pressione controllata per elettrodi di batterie (larghezza massima 300 mm) -MSK-E2300B

Working Voltage

• 208 - 240 VAC, 50/60Hz, Single Phase
• 220V AC Power plug is not included (Please click here to order the plug)

Max. Power Consumption

• 2kW

Rollers (one pair)

• Dimensions: 200mm (Dia.) x 330mm (W)
• Material: Hardening Toll Steel with HRC 60-62
• Effective Rolling Width: <250mm

• 0.050 - 1 mm adjustable by Dual micrometer knobs
• Tolerance: 0.003mm

• 550W AC motor with frequency controller
• 1 - 6 Meter /Minute adjustable by Touch Screen Control Panel

• 60-62 HRC
• Never roll materials with hardness >50HRC

Press Planeness

Pressure Control

• Pressure load: Max. 25Tons adjustable by Touch Screen Control Panel
• Real-time pressure displays with data recording function



• The electrode edge slitting is available upon request for for cylindrical cell fabrication.

Rectifying Sensor

Compressed air

60psi required (Air compressor is not included. Please click here to order)
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

pic1  pic2

Compliance

• MTI has granted the patent 201720537817.1& 201720534495.5 for the Roll to Roll Pressure Controlled Electric Rolling Machine MSK-E2300B since December 2017.
• NRTL or CSA certification is available upon request at the extra cost

Application Notes

• Never roll materials with hardness >50HRC

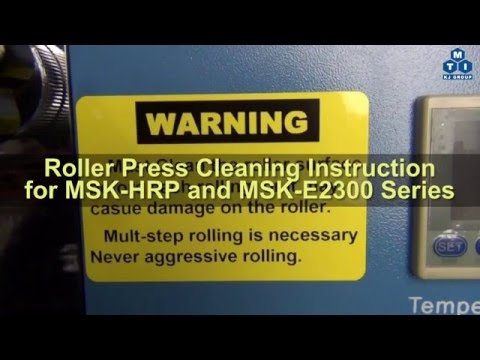

• Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
• Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm comparing to sheet original thickness.
• Roll and press the electrode sheet multiple times to condense the slurry.
• Apply antitrust if the machine were to be unused for a long period of time
• Sample testing is available upon customer's request

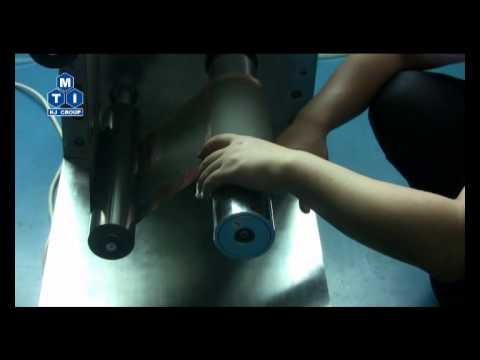

• Pre-installed Edge Position Controller (EPC) used for controlling the edge position of film during winding,
• It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor).



• Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)
• Analysis of geometric and electrochemical characteristics of lithium cobalt oxide electrode with different packing densities
