Origalys  |  SKU: X13OGL018R

Origatrod - Rotating Electrode Same dimensions as Radiometer EDI101

€0,00

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

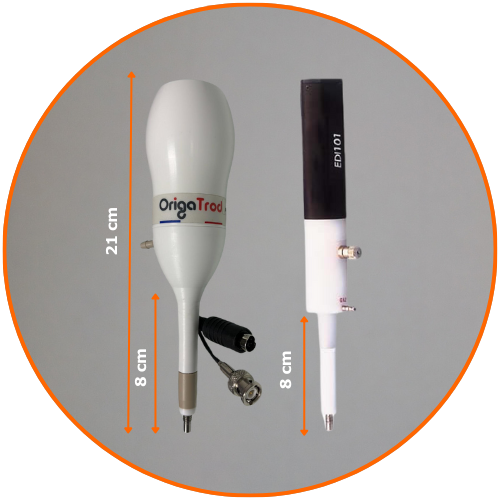

Origatrod - Rotating Electrode Same dimensions as Radiometer EDI101

Origalys

Take reliable, accurate kinetic measurements with our rotating disc electrode.
Controlled by a new version of the CTV101: the OrigaBox.
Rotation speed from 100 to 10,000 rpm.

  • With this measuring instrument designed for electrochemistry, you can determine the speed of an electrolytic flow in the vicinity of the EDT.
  • Discover our kit including the electrode with optical encoder and the speed controller, all of which can be connected via USB to the software installed on the PC.
  • Rotating electrode must be connected to a device in the OrigaStat range (OGS080 / OGS100 / OGS200).
  • Fits onto the OrigaCell Kit of the OrigaStat.



RDE/EDT

100 to 10,000 rpm

RIN/NS 14/23 running-in

Digital optical encoder mounted directly on the motor shaft,
guaranteeing rotational speed accuracy of the order of 0.35%.

A removable PEEK splined connector allows neutral gas to be circulated
the electrode body to protect it in corrosive atmospheres.
corrosive atmosphere.

The electrical signal is provided by a silver-doped graphite contact.
doped graphite contact.

Two models available:
X130GL018C
X130GL018R (same dimensions as Radiometer EDI101)

Compatible with all brands of potentiostats
& with Radiometer tips
