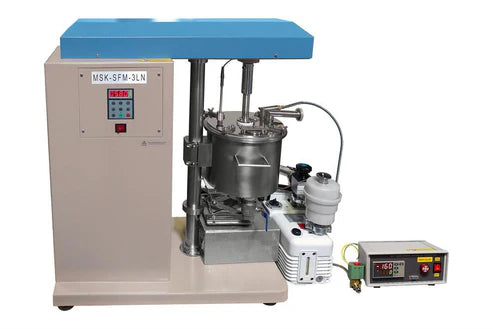

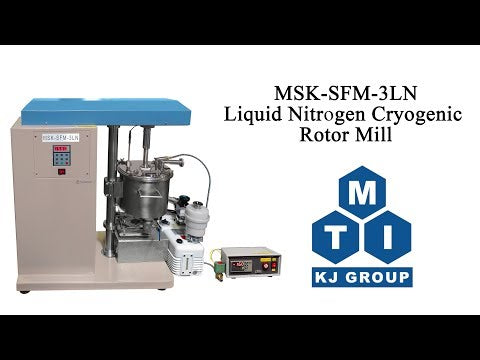

Mulino a rotore criogenico ad azoto liquido con serbatoio isolato termicamente sotto vuoto da 5 litri - MSK-SFM-3LN

MSK-SFM-3LN is a liquid nitrogen cold rotor mill with precision temperature control inside milling container, which is designed for grinding soft and tough material in a single container as low as - 160°C.

SPECIFICATIONS

Features	5-liter stainless steel container with vacuum thermal insulating shell Stainless steel blending rod with multi-layer blending blades; rotary speed adjustable from 0-1200 RPM Programmable controller to set time, speed, rotation direction according to application needs
Max. Size of Input Particles	20mm
Min. Size of Output Particles	1 micron
Voltage	220V single Phase, 10A Max. (110V AC available upon request) Note: 220V AC Power plug is not included while customers choose 220V version. Please click here to order the plug)
Power	AC motor at 1250W Max.
Rotor Rod Speed	0-1200 RPM variable
Grinding Container	Made of SS 304 Steel with 5 Liter Capacity and vacuum jacket for thermal insulation. Dimension: I.D.: 210mm Height: 180mm Vacuum jacket with KF 25 port  and needle valve  ( vacuum pump is not included, please click picture below right to order )
Grinding Media	Click the picture below to order milling ball according to your application Max. load of milling media is 3.5Kg (suggested ball size < 5mm diameter)
Temperature & Liquid Nitrogen Flow Control	Temperature inside the container is measured and controlled by the temperature controller with a thermal couple insert. The liquid Ni flow is regulated by the CSA certified cryogenic solenoid valve, 1/4 FNPT, 155 psi max.  The lowest temperature: - 160C Liquid nitrogen tank and pipe are not included.  Please order from your local vendor Please see picture blow for operation procedure
Compliance	CE certified NRTL certification is available at an extra cost
Application Notes	Vacuum pump is required for the operation
