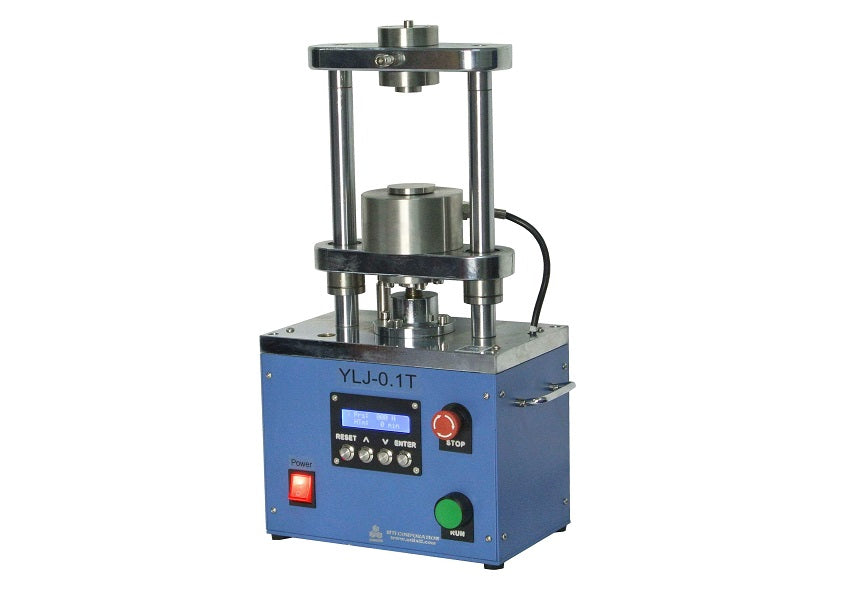

50 - 450N Precision Electric Press with ° 5N Accuracy - YLJ-01TA

• 110 - 240V AC (50/60Hz) power adapter, NRTL & CSA certified
• 24V DC motor, 15W
• Ar environment compatible

Pressure Control

• A built-in load cell with a digital display for pressure measurement and control

• Pressure adjustment range: 50 N - 450N ( 5kg - 45Kg
• Digital pressure control with +/- 5N accuracy ( 0.5 Kg)
• Dwell time: 2- 9999 min programmable

• Working plate: ?55 mm
• Max sample height: <100mm
• Travel distance: 20mm
• You may add two rectangular aluminum plates ( W 55mm x L 60 mm) to press a pouch cell.

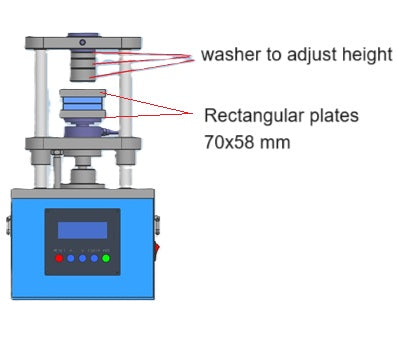

• The press with rectangular plates (70x58mm) is available upon request at an extra cost.



• CE approval
• NRTL or CSA (UL 1450) is available upon request at extra cost.
• Note: NRTL certification is not necessary due to 24VDC safe device

• One-year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)

• It can be used as a jig for compressing pressure adjustable split test cell, please click the picture in below for details:
• It also can be used for pressing pellet via < 0.5" diameter die in the glove-box under both N2 and Ar gas
• The press machine can be put into the glove-box through the air-lock chamber
