150 Max Solid-state Battery Heating and Pressurizing Analysis System - YLJ3TPSCHT

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

150 Max Solid-state Battery Heating and Pressurizing Analysis System - YLJ3TPSCHT

MTI

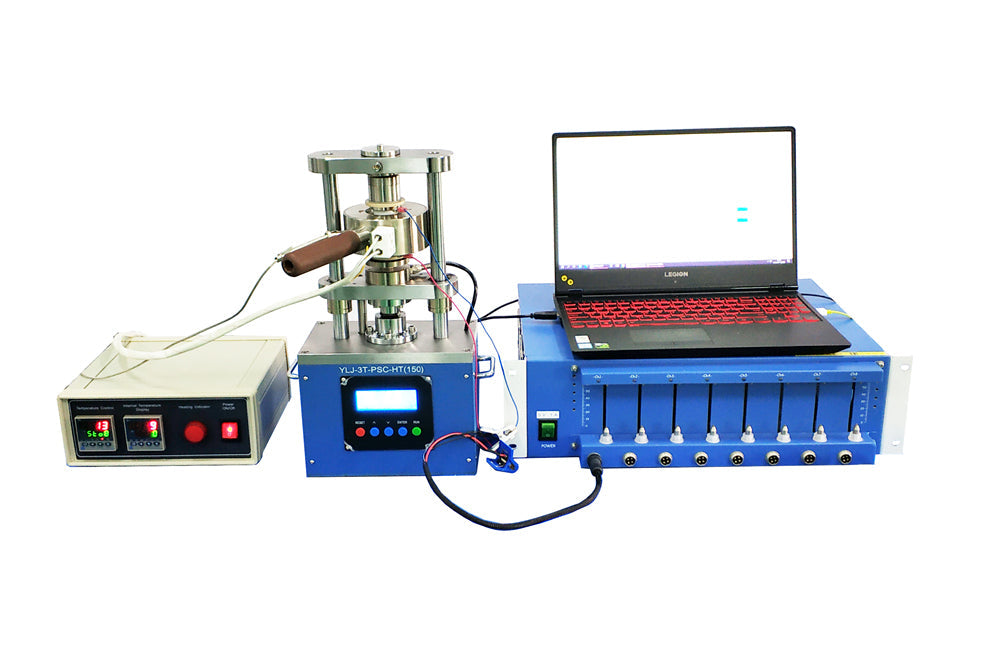

YLJ3TPSCHT is a solid-state battery heating and pressurizing analysis system containing a set of devices to study the performance of solid-state battery materials under different pressures and temperatures.

SPECIFICATIONS:

Electric Pressurization
  • Power supply: DC 24V
  • Power: 90W
  • Maximum Pressure: 3T
  • Maximum Stroke: 25mm
  • Work surface size: ?58mm
  • Workspace: 260*130*430mm(L*W*H)
  • Display range: 1.00-3000.00kg
  • Control range: 30-3000kg (constant pressure accuracy: ±3kg)
  • Pressure Dwelling Time: 1-9999min
  • The equipment has two working modes: automatic pressurization and manual pressurization
  • Three modes of automatic pressurization:
(1) Constant pressure mode: When the pressure value reaches the target value, in the process of pressure dwelling, the equipment continuously makes the pressure to maintain the pressure at the set value.
(2) Non-constant pressure mode: When the pressure value reaches the target value, the pressure is not replenished during the dwelling process.
(3) Intermittent constant pressure mode: When the pressure value reaches the target value, the pressure is replenished every 5 minutes during the packing process, and the pressure is maintained around the target value.

A low-cost press without a pressure recording function is also available for combination.

            YLJ-15                         YLJ-5TA
Solid-State Battery Testing Cell
          (No Heating, optional)
  • The sleeve is made of PEEK or Nylon, which has high mechanical strength, high insulation, and strong corrosion resistance
  • The upper and lower die cores are made of stainless steel, and a gold-plated pressure bar is optionally available
  • The sleeve fixing ring is made of aluminum for great thermal conductivity
  • Die diameter of ID· ?10mm (other core sizes are available upon request).
  • A split test cell for pouch batteries is available upon request.
Solid-state Battery Testing Cell    (Heating Condition, included)
  • If you would like a test cell under heating,  please order the test cell made of Si3N4 ceramic as an option, which can be heated up to
  • 500oC. Please click the picture below to see the details:
  •
  • A Si3N4 heating die with an I.D. of 10 mm is included. Other sizes (eg. 12 mm, 20 mm) are also available upon request.

Temperature/Heating Control
  • A heating jacket is included for heating test cell
  • Power supply: either 110 V or AC 220V can be chosen by the customer.
  • Power: 550W
  • Maximum heating temperature: 150 °C
  • PID automatic temperature control system with 30-stage intelligent thermometer
  • Built-in overheating protection and thermocouple fault alarm
  • Accuracy: ±1 °C;
  • Default DB9 PC communication connection port;
  • MET certification;
  • Optional computer temperature control software (for YD518P series controller) for controlling the heating curve and exporting data.

8-Channel Battery Analyzer
  • 8 channels battery analyzer ( 0.02 mA - 10 mA up to 5VDc)
  • Each channel has an independent constant current source and constant voltage source, which can be programmed and controlled according to the scheme
  • Software is included for displaying the curve of charging/discharging with temperature and pressure

Computer Software
(Optional)
  • The software can display the temperature, pressure, and charge and discharge curves of solid-state batteries in real time on the same interface, which is more intuitive and can be exported to facilitate the comparison of multiple experiments
