MTI  |  SKU: YSZa50D05C1

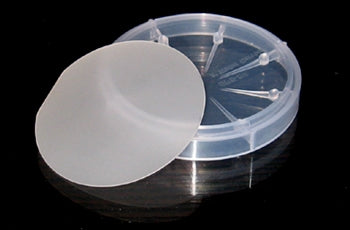

YSZ Single Crystal Wafer (100) 2" dia x 0.5 mm, 1SP - YSZa50D05C1

€534,41

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

YSZ Single Crystal Wafer (100) 2" dia x 0.5 mm, 1SP - YSZa50D05C1

MTI

Specifications:
  • Single crystal:        YSZ
  • Size:                     2" dia. x 0.5 mm +/-0.05 mm
  • Orientation:            (100) +/-0.5 Deg
  • Polish:                   one side polished, polished by CMP technology
  • Surface roughness: < 5A RMS by AFM
Typical Properties

Chemical Formula

Y2O3 stabilized ZrO2, 8 % mole Y2O3

Crystal Structure

Cubic, Face Centered, CaF2 type

Unit Cell

a = 5.125 A

Density

5.8 g / cc

Melting Point

2500 oC

Thermal Expansion Coeff.

10.3 ppm / oC

Dielectric Constant

27

Crystal Growth Technique

Flux Technique
