MTI  |  SKU: YSZa050510S1

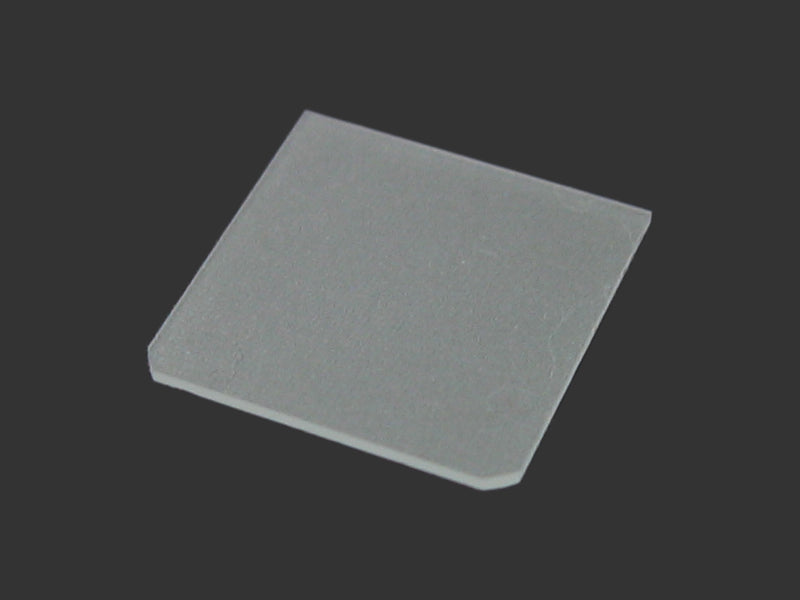

YSZ Single Crystal Substrate (100) 5x5x1.0mm, 1SP

€20,22

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

YSZ Single Crystal Substrate (100) 5x5x1.0mm, 1SP

MTI


Specifications:
  • Single crystal:         YSZ
  • Size:                      5 x 5 x 1.0 mm +/-0.05 mm
  • Orientation:            (100) +/-0.5o
  • Polish:                   one side polished, polished by CMP technology
  • Surface roughness: < 5A RMS by AFM
Typical Properties

Chemical Formula

Y2O3 stabilized ZrO2, 8 % mole Y2O3

Crystal Structure

Cubic, Face Centered, CaF2 type

Unit Cell

a = 5.125 A

Density

5.8 g / cc

Melting Point

2500 oC

Thermal Expansion Coeff.

10.3 ppm / oC

Dielectric Constant

27

Crystal Growth Technique

Flux Technique
