MTI  |  SKU: YSZc101010S1

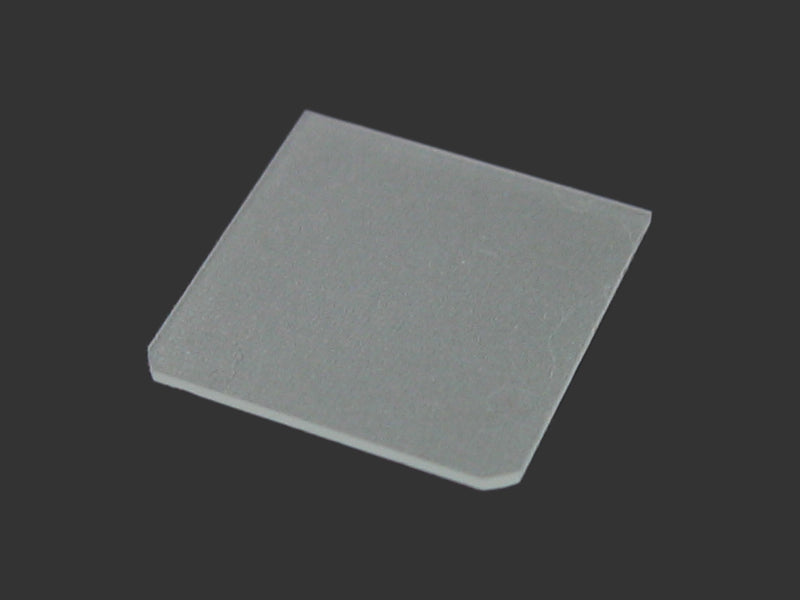

YSZ (111) 10x10x1.0mm, 1SP - YSZc101010S1

€75,69

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

YSZ (111) 10x10x1.0mm, 1SP - YSZc101010S1

MTI

Specifications:
  • Single crystal:        YSZ
  • Size:                     10 x10 x 1.0 mm +/-0.05 mm
  • Orientation:            (111) +/-0.5 Deg
  • Polish:                   one side polished, polished by CMP technology
  • Surface roughness: < 5A RMS by AFM
Typical Properties

Chemical Formula

Y2O3 stabilized ZrO2, 8 % mole Y2O3

Crystal Structure

Cubic, Face Centered, CaF2 type

Unit Cell

a = 5.125 A

Density

5.8 g / cc

Melting Point

2500 oC

Thermal Expansion Coeff.

10.3 ppm / oC

Dielectric Constant

27

Crystal Growth Technique

Flux Technique
