MTI  |  SKU: YLJ40TS

40T Manual Hydraulic Laboratory Press with Separable Pump - YLJ-40

€2.872,70

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

40T Manual Hydraulic Laboratory Press with Separable Pump - YLJ-40

MTI

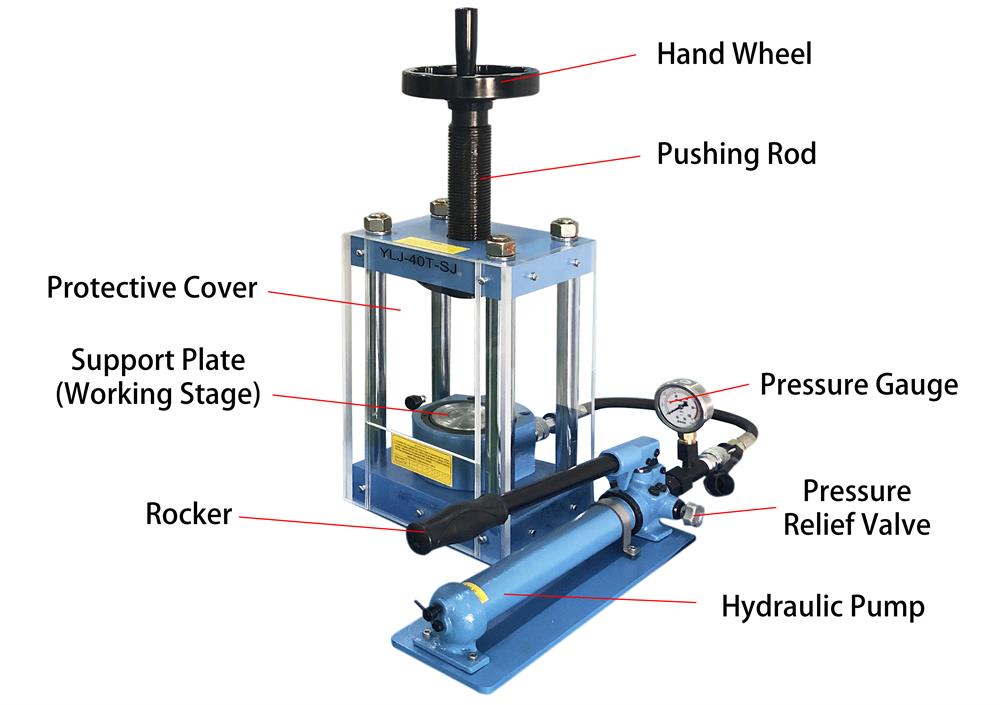

YLJ-40T is a 40T manual hydraulic pressing machine with a separable pump for easy maintenance. It is an excellent tool for material and chemistry laboratories to prepare compound or ceramic pellet samples.

SPECIFICATIONS:

Max. Pressure
 40 Metric Tons
Bottom Hydraulic Cylinder Travel Distance 0 - 16 mm
Top Support Screw Adjustable Height 170 mm
Hydraulic Cylinder Diameter 80 mm
Max. Working Space 80 mm Dia. x 170mm H
Gauge Pressure  vs Cylinder  Force

Pressure Display on gauge (MPa)

5.6

11.4

17.0

22.8

28.4

34

39.8

45.4

Force on Hydraulic Cylinder (T)

5

10

15

20

25

30

35

40

Calculation: Force on Hydraulic Cylinder ( T ) = 0.88  Gauge (MPa)
Protection Cover
  • A Polycarbonate Safety Shield is included in the standard package.
  • Note: The door must be closed during use.
Dimension     350mm L x 550mm W x 600mm H
Net Weight of Machine 55 Kg (121 lbs)
Shipping Dimensions 39"(L) x 31"(W) x 35"(H)
Shipping Weight 185 lbs
Press Dies optional Pressing dies with various diameters are available upon request at extra cost. Please click the picture below to choose dry pressing die
    Heatable die
Electric pump optional The manual pump can be replaced by the electric pump which has programmable pressure control to use inside glovebox
( Feedthrough for manual pump is not available )
