MTI  |  SKU: EQ-WIFI-610

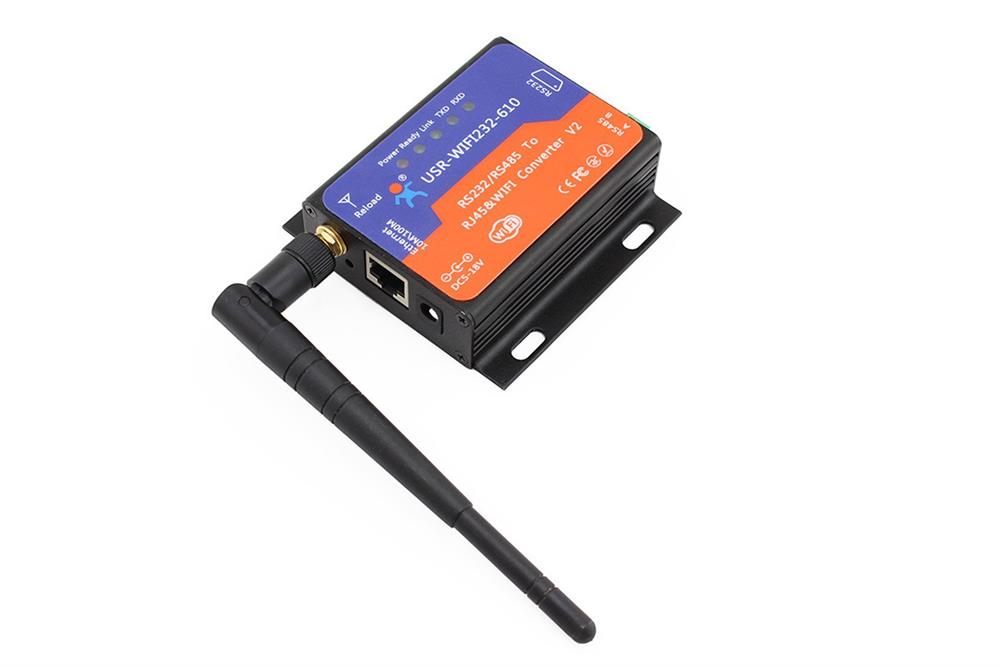

USR-WIFI232-610 Serial RS232 RS485 to Wifi 802.11 b/g/n and Ethernet Converter - EQ-WIFI-610

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

USR-WIFI232-610 Serial RS232 RS485 to Wifi 802.11 b/g/n and Ethernet Converter - EQ-WIFI-610

MTI

USR-WIFI232-610-V2 is a wireless serial WIFI converter, which is used for the project of RS232/RS485 serial equipment to WIFI or Ethernet networking. It can be controlled by mobile phones or laptops, also can be connected to the remote server.

 The computer can be included at extra cost.

Product Features
  • Hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition
  • DC5~18V wide voltage input, can provide 2A current MP1482DS DCDC power supply chip, keep the system reliability.
  • RS232 RS485 automatic switching
  • Rich status indicator light: Power Ready Link RDX TXD
  • Support IEEE802.11b/g/n wireless standards
  • Support TCP/IP/UDP network protocols
  • Support RS232 RS384 data interface
  • Support external antenna
  • 485 Protection: anti-surge, overvoltage protection
  • Single 5-18V power supply
  • Small size: 84 x 84x25mm
  • FCC/CE/RoHS/TELEC certificated
