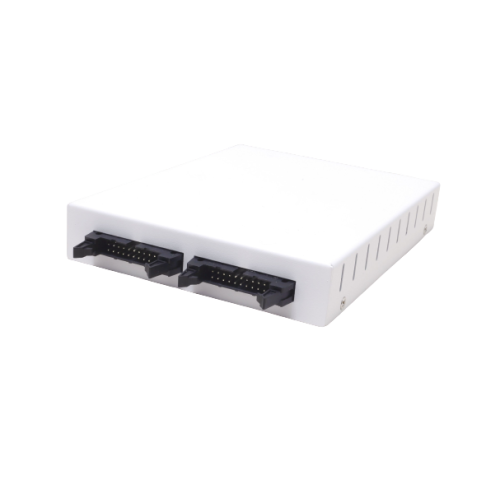

TSAQ-CVM30 30-Channel Cell Voltage Monitor

TSAQ-CVM30 is a 30-channel cell voltage moniotr (CVM) that can be used for various fuel cells, electrolyzers, and batteries in order to monitor the individual cell voltages in a stack, short stack or full stack.   TSAQ-CVM30 Cell Voltage Monitor Features Include: • 30 channel measurement capability • ± 5V input range • 16-bit (±154 microvolt) resolution • 0.02% (±1mV) accuracy • 1kV isolation • ±80V common mode rejection • 1 KSa/s sample rate • Sample rate of max 100 Hz • Dimensions of 161mm X 123mm X 26mm • DC 12V input power Interface: • 1000/100M Ethernet • CAN Bus • Octocoupler Output x2   TSAQ-CVM30 Software Manual TSAQ-CVM30 Technical Data Sheet
