Thick Aluminum Nitride Substrate for RTP Furnace's Sample Holder - EQ-AIN-Holder

MTI

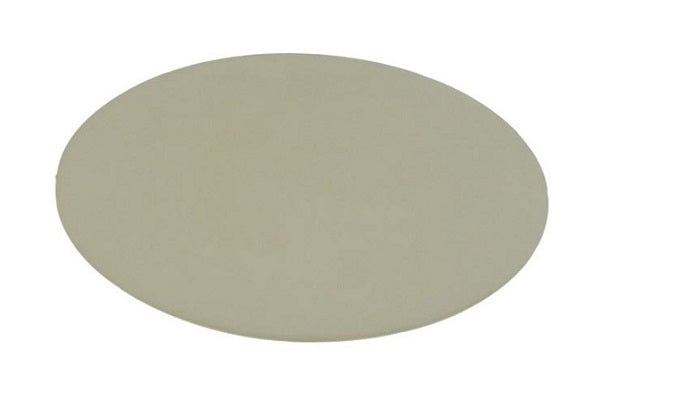

Such unpolished Aluminum Nitride can be placed in the center of holder for holding test
samples up to 3" or 5" diam. The excellent temperature uniformity can be achieved in this 3" or 5"
diam. area due to the benefit from its high thermal conductivity.


Aluminum Nitride Ceramic Substrates Properties

Item No.

AIN-Holder

Purity (wt%)

99% (AN5116)

Density (g/cm3)

   >3.26

Thermal Conductivity (W/m. K)

  >170

Thermal Expansion (x10-6/oC)

 <4.2

Dielectric Strength (Kv/mm)

 >15

Dielectric Constant (at 1MHZ)

8.7

Loss Tangent (x104@1 MHz)

  3 - 7

Volume Resistivity (ohm-cm)

     >1014

Flexural Strength (Kgf/mm)

  >30

Substrate Specifications

3" or 5" diameter, 0.65mm thickness
surface: fine ground




Product Configuration
The unpolished AIN in the center of holder is able to hold test samples up to 3" or 5" diam.
