MTI  |  SKU: EQ-TC-S-GSL-6C

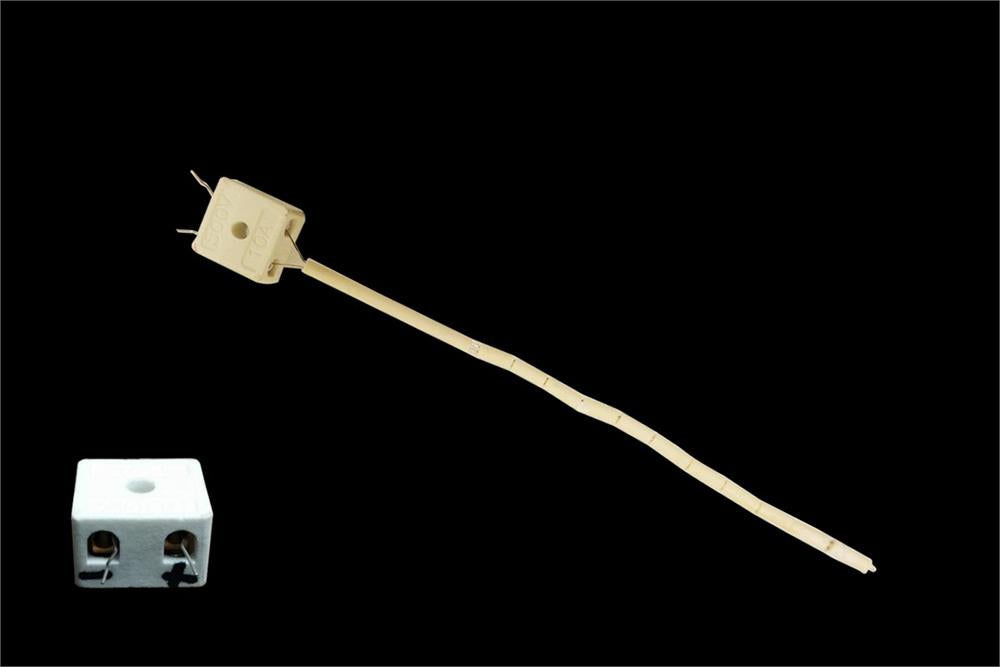

Thermocouple: S type (Pt-Rh to Pt ) 6" Length with ceramic sheath - EQ-TC-S-GSL-6C

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Thermocouple: S type (Pt-Rh to Pt ) 6" Length with ceramic sheath - EQ-TC-S-GSL-6C

MTI

Features:

  • Customize design for OTF-1200X-III-C
  • S type thermocouple for applications at high temperature up to 1600oC
  • Suitable for room temperature - 1500oC series furnaces
  • Ceramic end holder with screws to connect thermocouple to a temperature controller
   Specifications:
  • Length:                         155 mm (6.1")
  • Diameter of sheath:        4.1 mm ,  high purity Alumina
  • Positive Material:           Pt-10%Rh
  • Negative Material:          Pt
  • Lowest Temperature:     50 oC
    Highest Temperature:    1600  oC
    Minimum Std. Error:      +/- 2.2  oC
  • Customize design for OTF-1200X-III-C
