MTI  |  SKU: TCK6S3

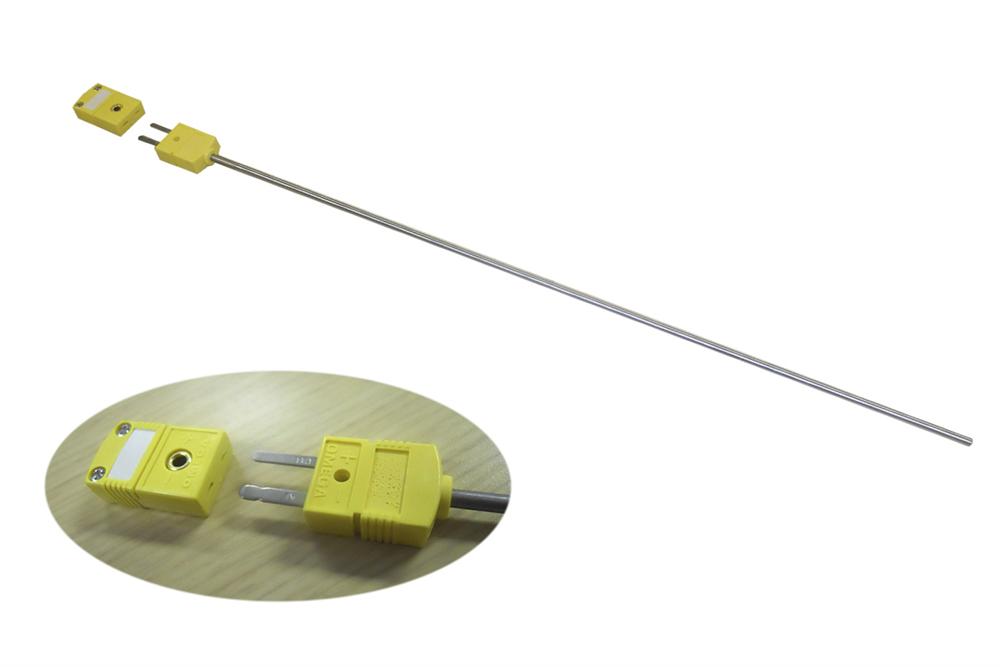

Thermocouple: K type 3mm OD x 6" L with Alloy Sheath and Mini Male Plug for Calibration - EQ-TC-K-Cali-6S-3mm-LD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Thermocouple: K type 3mm OD x 6" L with Alloy Sheath and Mini Male Plug for Calibration - EQ-TC-K-Cali-6S-3mm-LD

MTI

Features:
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1335 oC (2440 o F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Superalloy Sheathing Provides Excellent High-Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
  • Made with materials of Special Limits of Error.  Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with male plug; related product below)
  • Suitable for the MTI's Film Coaters
Specifications:
  • Length:                           6"
  • Diameter of sheath:         3mm diameter
  • Positive Material:             Ni-Cr
  • Negative Material:           Ni-Al
  • Highest Temperature:     1335  oC
  • Lowest Temperature:      -200 oC

Application Note:
  • If necessary, please check out K type thermocouple extension wire with mini male plug.
  • There are 2 polarities for K-type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. The wrong polarity may cause the temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
  • For MTI Tube with tube diameter over 100-130 mm, if your MTI Tube's diameter is less than 100mm please choose 9-inch Thermocouple EQ-TC-K-Cali-9S-3mm-LD.
