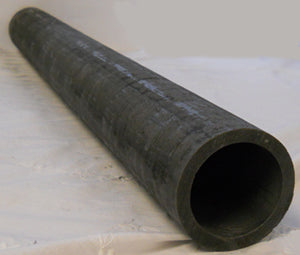

SiC-coated High Purity Graphite Tube: 2.5"OD x 2"ID x 24" Length (63.5ODx50IDx620L, mm), TG-60D-24L-LD

MTI

Specifications:

  • O.D: 2.5 " +/- 0.05'' (63.5mm)
  • I.D: 2.00'' +/- 0.05'' (50.8mm)
  • Length: 24" (620mm)
  • Purity: > 99.999%
  • Manufacture Method: Extruded
    SiC coating is at the outer surface of the tube, up to 1400°C. in air   ( inside tube mus use inert gas )

Typical Properties

PROPERTY US VALUE METRIC VALUE
  Particle Size 0.008   in 0.02032   cm
  Density 0.060   lb/in 3 1.65   gr/cm 3
  Flexural Strength 3700   psi 25.5   mpa
  Compressive Strength 6000   psi 41.4   mpa
  Resistivity 3.2   ohm/inx10 -4
  CTE 0.6   in/in °F x 10 -6 1.1   Microns/m °C
  Temperature (Air) 750   °F 399   °C
  Temperature (Inert) 5000   °F 2760   °C
  Ash Content less than 50   ppm

In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading sample directly inside the tube,
please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )



Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.
