MTI | SKU:
HPRV1500

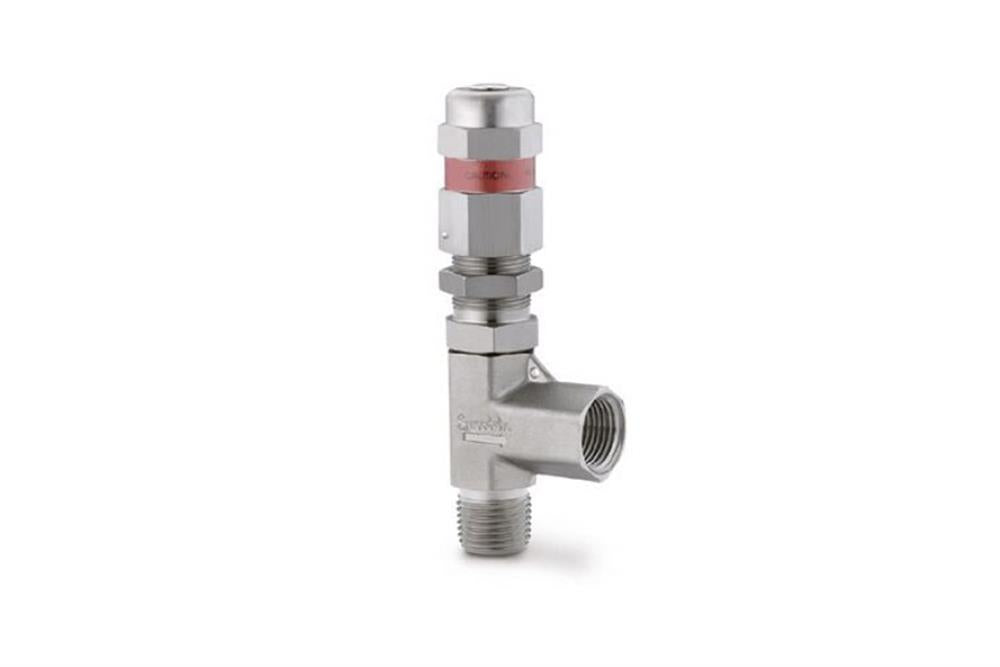

SS Pressure Proportional Relief Valve (50-1500 psig), 1/2 in. MNPT x 1/2 in. FNPT- HPRV1500
€0,00
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
SS Pressure Proportional Relief Valve (50-1500 psig), 1/2 in. MNPT ...
€0,00
Unit price
/
Unavailable
SS Pressure Proportional Relief Valve (50-1500 psig), 1/2 in. MNPT x 1/2 in. FNPT- HPRV1500
MTI
| Specification | |
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Size | 1/4 in. |
| UNSPSC (SWG01) | 40141606 |
| Lubricant | Dow Corning Molykote 55 Grease |
| Max Temperature Pressure Rating | 300°F @ 1500 PSIG /148°C @ 103 BAR |
| Room Temperature Pressure Rating | 1500 PSIG @ 100°F /103 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Service Class | High Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37010901 |
| eClass (6.1) | 37019901 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (17.1001) | 40141600 |
| UNSPSC (4.03) | 40141606 |
| UNSPSC (PGE) | 401416AL |
| UNSPSC (SEQIRUS) | M4170 |
| Valve Material | 316 Stainless Steel |
| Materials of Construction |
|
| Dimension |
|
