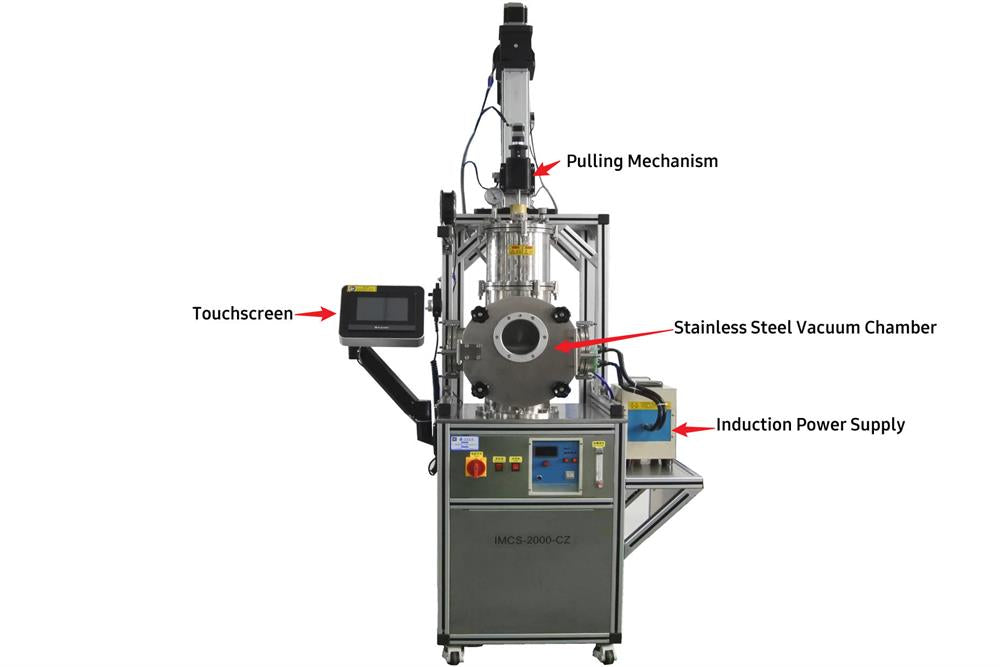

Small CZ Crystal Grower System for < 1" Single Crystals up to 2100C - IMCS-2000-CZ

• Input: 208VAC  or 380VAC, 3 phase, 50A(max induction power), 50/60Hz
• Output: 25kW(max)

• Max: 2100°C (3812°F) with induction heating

• Material: SS304

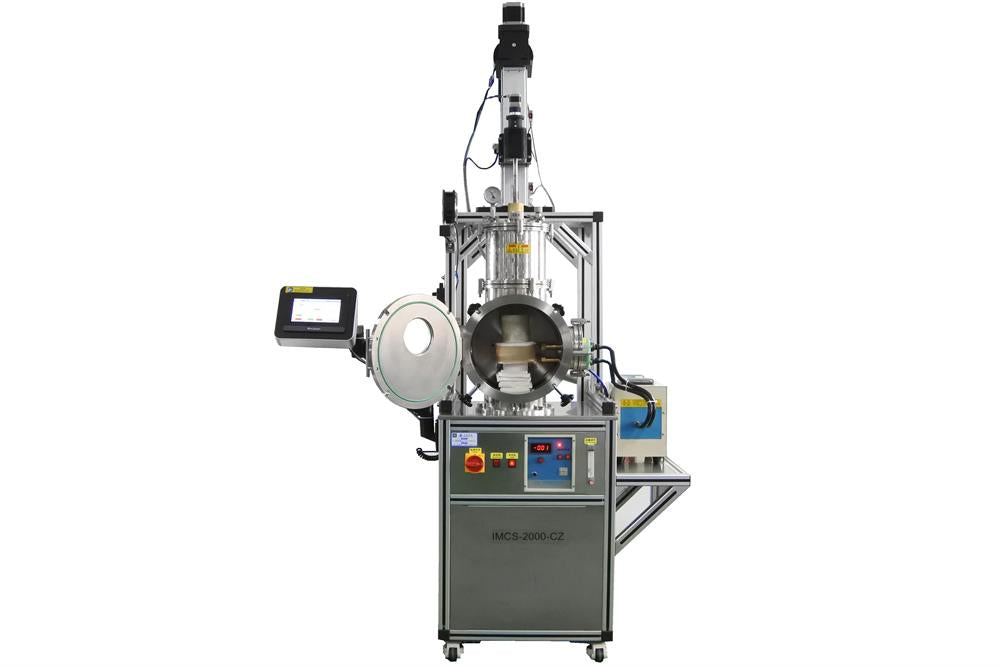

• Size: ?320×320mm, equipped with a quartz window (?120mm) to observe material melting, crystal seeding, and growth.
• There is one KF25 port and one KF40 vacuum port connected to the back of the chamber. There is also one LF160 port on the right side of the chamber for molecular pump system connecting.

• The pulling mechanism is driven by a precision servo motor/n
• Pulling Speed: 0.1-10 mm/hr
• Pulling rod rotation speed: 0.1-23 rpm
• Travel Distance: 0-300mm
• The pulling mechanism can move as quickly as 35mm/min

Vacuum atmosphere

• The vacuum chamber can be evacuated and filled with inert gases.
• Equipped with a digital anti-corrosion vacuum gauge (oiled ceramic coating on the sensor), the measuring range is 10 ^-5 ~ 1000 torr
• Vacuum level:    5x 10-5 torr (turbopump)  or 5 × 10-2 Torr (mechanical pump)
  Vacuum pump ( optional):  Please click the picture below to choose a vacuum pump at the extra cost.

•

Induction Heating

• 25KW (30-80KHz) induction power supply with Time Controller and Power Controller
• Induction coil: ?90mm × 80mmH

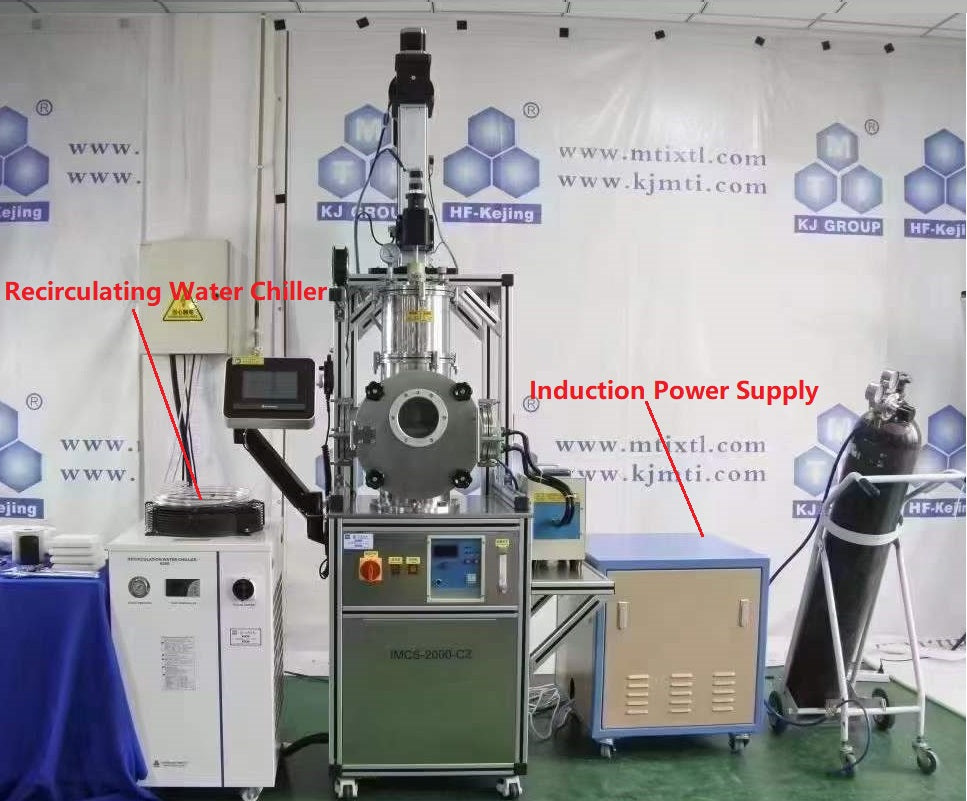

• Water cooling: 116L/min circulating water chiller is not included.
• The crucible and thermal insulation accessories are not included.    We can provide them based on your application.

Control Panel

• Touch screen control panel control
• Induction power
• pulling speed
• rotating speed

Application Notes


Melting materials           Crystal seeding                    Start pulling                      Sapphire boule grown    Ni Crystal grown

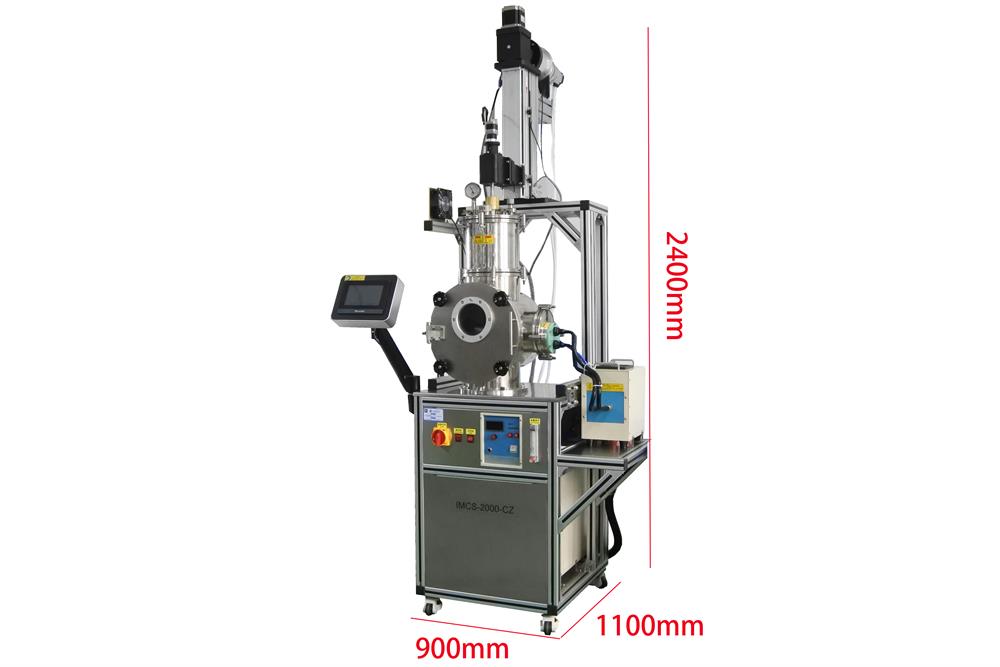

Dimension

900mm(L) * 1100mm(W) * 2100mm(H)
