MTI | SKU:
GR10035
Semi-Circle Graphite Crucible for Containing Samples in Tube Furnaces
€0,00
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
Semi-Circle Graphite Crucible for Containing Samples in Tube Furnaces
€0,00
Unit price
/
Unavailable
Semi-Circle Graphite Crucible for Containing Samples in Tube Furnaces
MTI

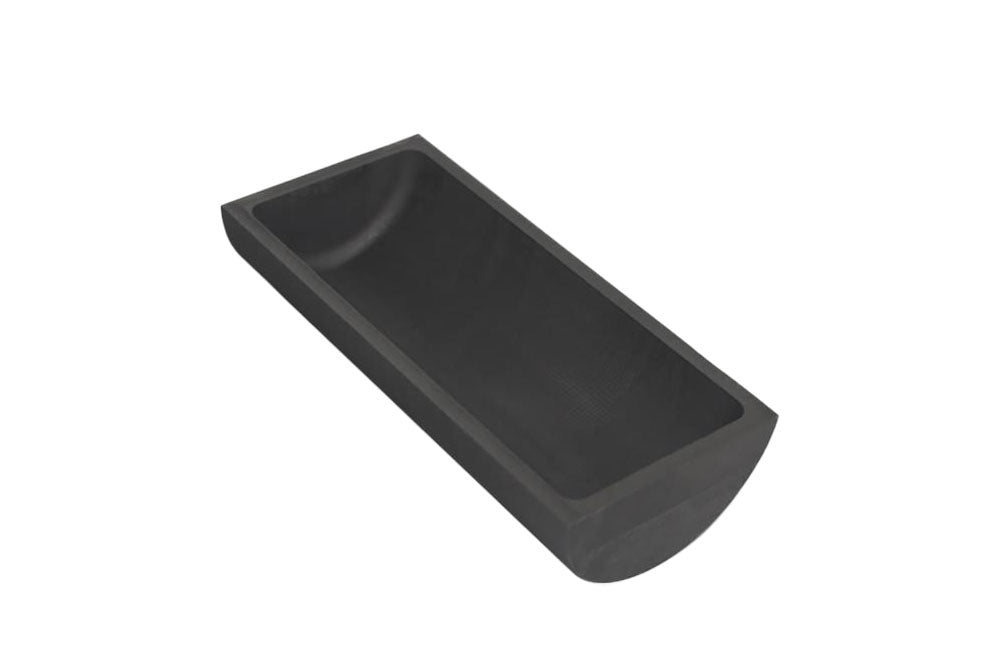

GR10035 and GR15045 is a high-purity graphite crucibles for the MTI's tube furnaces with tube sizes 2" and up
SPECIFICATIONS:
| Model | GR10035 | GR15045 |
| Dimension | 100 x 35 x 18 mm (L x W x H) Wall Thickness: 3.5mm |
150 x 45 x 23 mm (L x W x H) Wall Thickness: 5mm |
| Material | Graphite | |
| Max Working Temperature | Under inert gas: 2760°C Under air: 399°C |
|
| Density | 1.74g/cm^3 | |
| Bending Strength | 22.1 MPa | |
| Compressive Strenght | 42.7 MPa | |
| Thermo Conductivity | 190W (m^2K/m) | |
| Electric Resistance | 4.0 ohm/inx10^-4 | |
