MTI  |  SKU: RTPHE

Halogen light Heater (1KW) for Compact RTP Tube Furnace only - RTP-Halogen-light

€109,25

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Halogen light Heater (1KW) for Compact RTP Tube Furnace only - RTP-Halogen-light

MTI

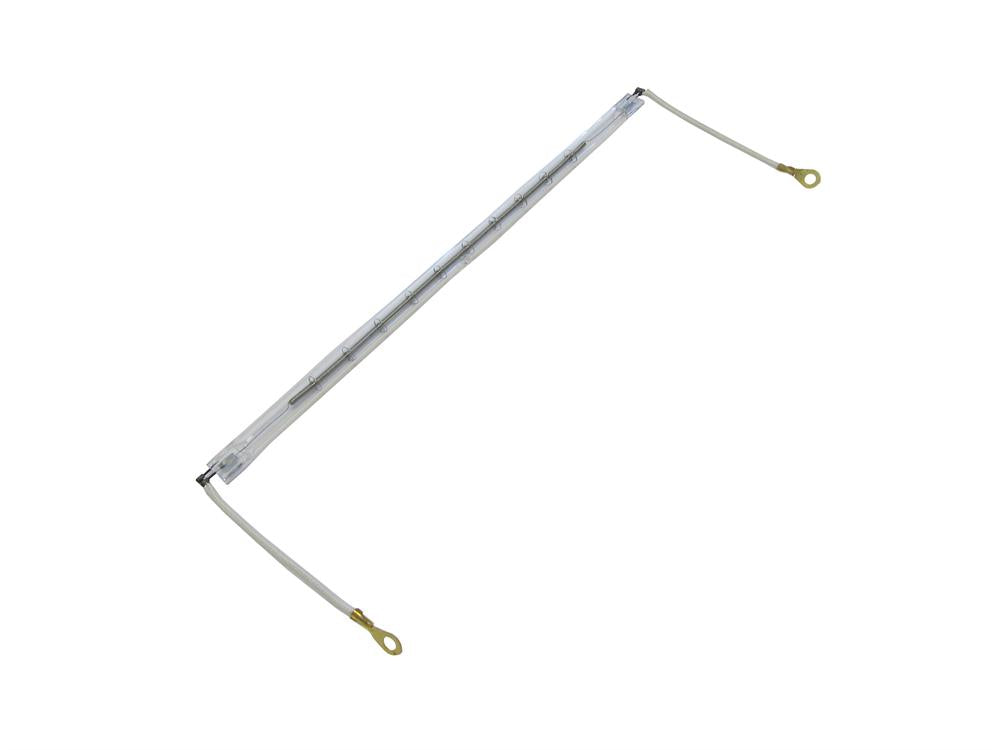

The halogen lamp is an incandescent lamp in which a tungsten filament is sealed into a compact transparent
envelope filled with an inert gas and a small amount of a halogen. Such halogen lamp was originally designed
for heating up Compact RTP Tube Furnace with max. heating rate upto 120 oC/second.



Aluminum Nitride Ceramic Substrates Properties

Item No.

RTP-Halogen-light

Filament Material

Tungsten

Lamp Size

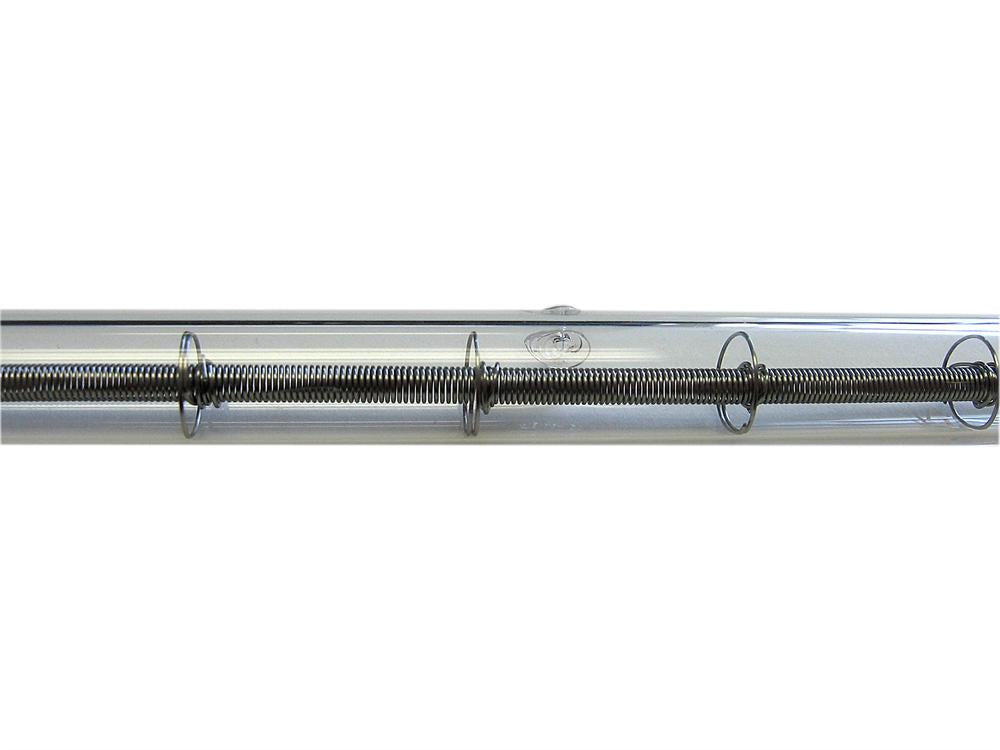

Length of tungsten filament: 200 mm
Total Length: 285 mm
Lamp Diameter: 10 mm








Power
1000W
ServiceLife

2000 hours




Product Configuration


Compact RTP Furnace is heated by eight halogen lights surrounded with max. 120oC/second heating rate.

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
