MTI  |  SKU: RC-Ti1100FT6

Ti Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600Ti - RC-Ti1100FT6

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Ti Vessel (1100 ml) with 6 1/4" Feedthrough Ports for VBF-600Ti - RC-Ti1100FT6

MTI

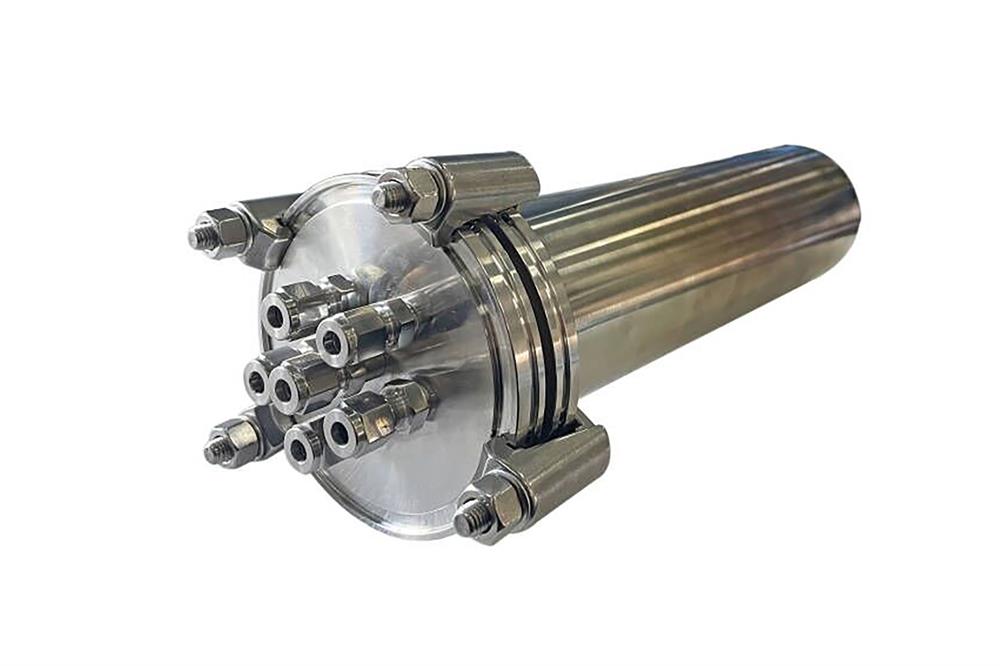

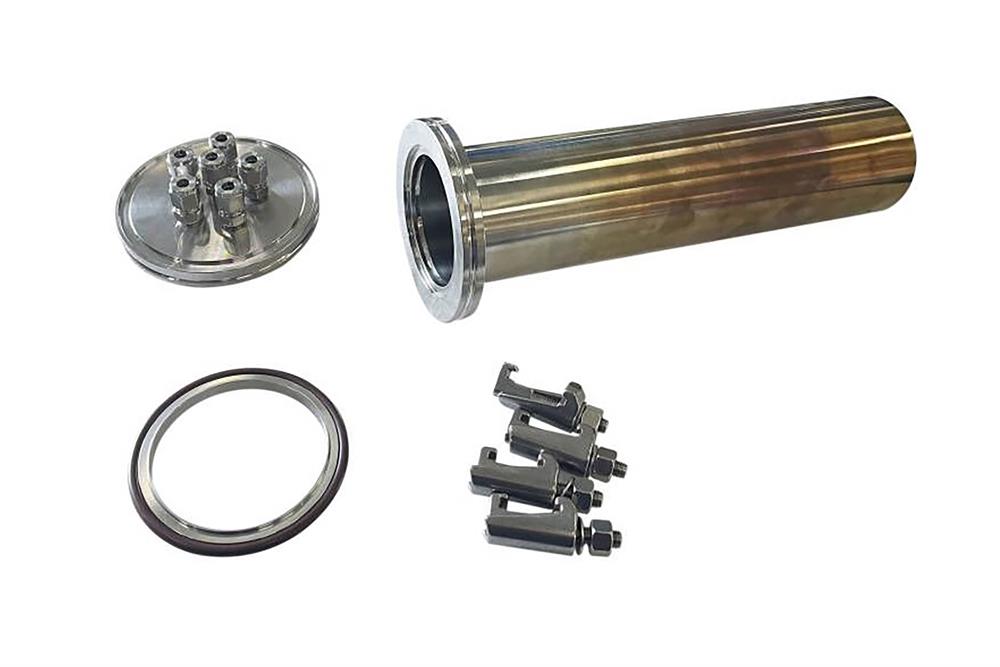

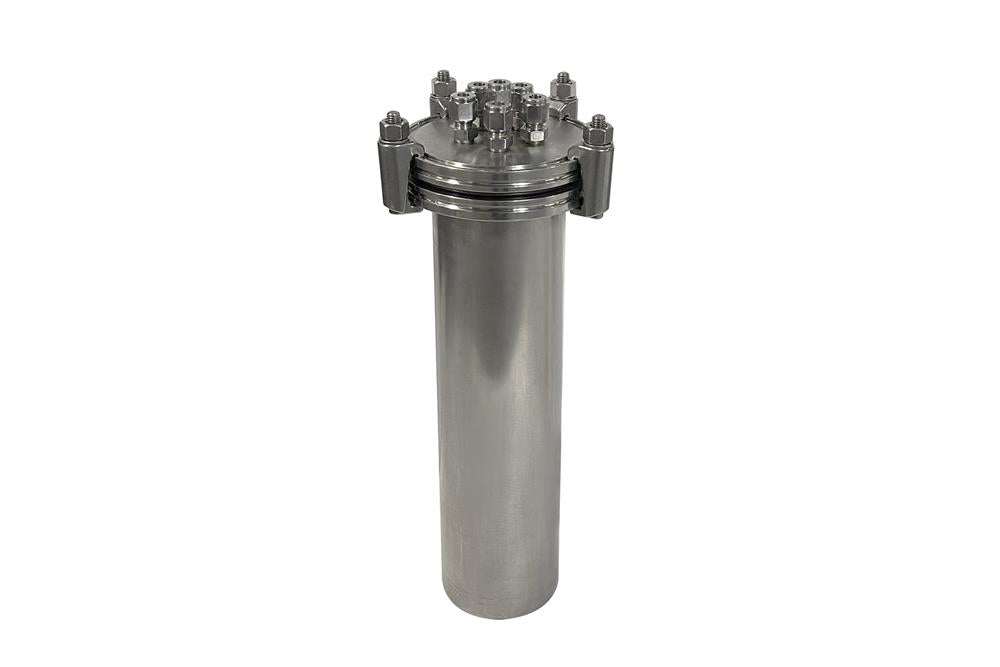

RC-Ti1100FT6 is a Ti ube with a vacuum flange and six 1/4" dia. feedthrough, designed for the reactor of molten salt battery. For use with VBF-600TI

Structure Pure Ti metal with purity > 99.5 wt %
Dimension

  76mm OD x 70mm ID x 300 mm height
Volume 1100ml

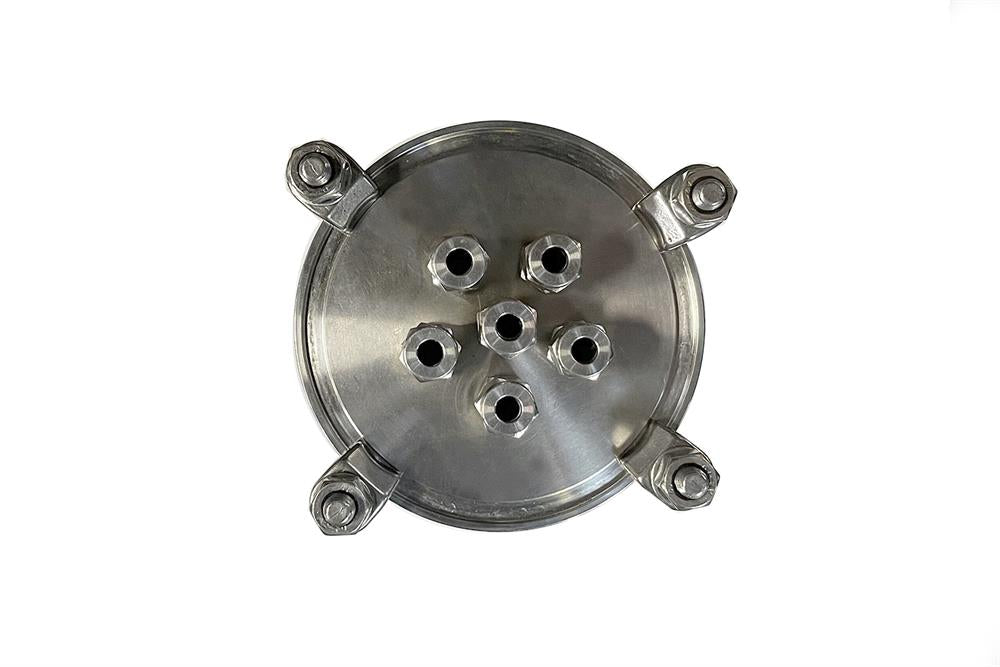

Ports 1/4" compression tube ports x 6
Flange Type DN80ISO-K
Working Temperature RT - 600°C Max
Working Pressure Vacuum: 10e-3 Torr by mechanical pump, or 10e-5 torr by a turbopump
Positive pressure:  3 bar
Net Weight 3.5Kg
Application Crucible for melting Li and other alloys
Reactor of molten salt rechargeable battery.
