MTI  |  SKU: PTLOV5P

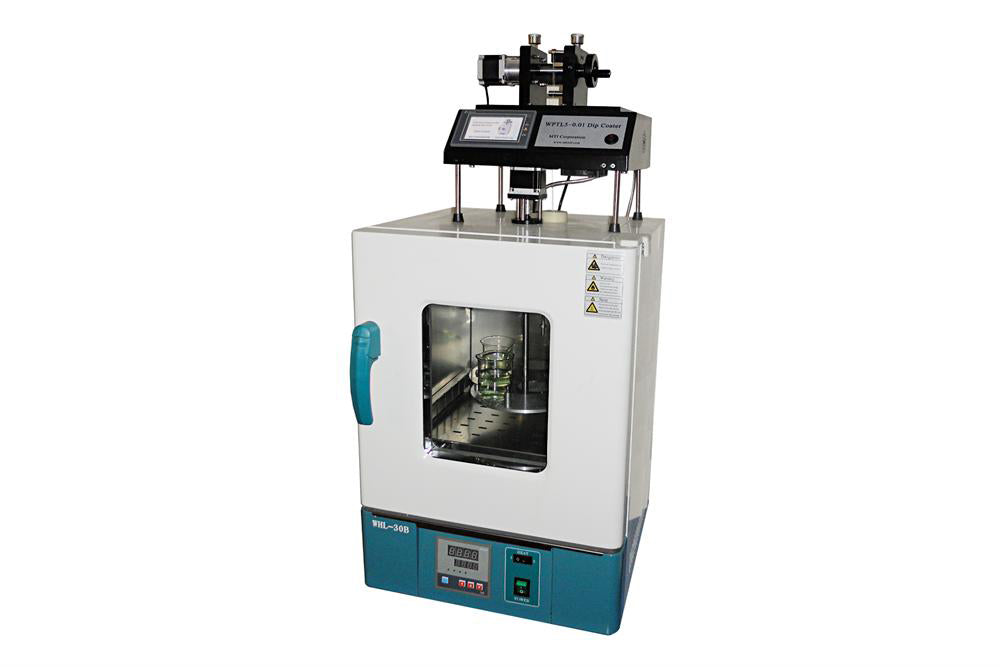

5-Position Programmable SILAR Coating Dip Coater with Heating Chamber 100C max. - PTL-OV5P

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

5-Position Programmable SILAR Coating Dip Coater with Heating Chamber 100C max. - PTL-OV5P

MTI

PTL-OV5P (Update from WPTL5-0.01) is a Programmable Dip Coater (1-200 mm/min) designed to prepare multilayer coating up to 5 solutions inside a temperature-controlled oven with touch-screen digital control. The dipping rate, pulling rate, dwell time, and amount of cycles can be set up by the touchscreen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution.

SPECIFICATIONS:

Control Panel
  • 6" LCD color touch screen controller can program:
    • Position of Dipping container: 1 to 5
    • Dipping/ pulling speed: 1-200 mm/min with accuracy within +/- 0.05%
    • Dipping/ pulling distance
    • Dwell time: ( 999 seconds max)
    • Dipping times: 20 times at each position
  • Power: UL-certified power adapter: 110-240VAC to 24V DC , 90W
Liquid Holder Disk

  • 5 liquid-holder positions. Carry up to 5 kinds of liquid solutions
  • Rotate automatically as programmed for Max. 5 positions and each position can dip max. 20 times.
  • Coating up to 5 layers by automatically rotating liquid-holder disk to dip sample from one solution to another
  • A customized program is available upon request at extra cost
Beakers
  • Five 150 mL beakers are included for immediate use
  • Dimensions: 60mm(Dia) x 60mm(H)
Programming
  • Traveling Distance: 0-75 mm Adjustable
  • Dipping/Pulling Speed: 1-200 mm/min Programmable with accuracy within +/- 0.02%
  • Temperature Range: 50-100°C (+/-1°C accuracy)
  • Dwell Time: 0-999 seconds (in liquid time)
  • Dry Time: 0-999 seconds
  • Dipping Position (turning): 1 - 5 positions (Max. 5 positions)
  • Dipping times: Max. 20 times (dipping in each position)
  • Note: Each beaker position shares the same programming parameters.
Sample Holder

Up to 2 samples can be carried sliding up and down through two sample clamp
Oven
  • Working Voltage: 208-240V AC (110V version is available via transformer)
  • Max. Power Consumption: 600W
  • Chamber Dimensions: 254mm(L) x 254mm(W) x 280mm(H)
  • Inner Material: Stainless Steel
  • Outside Dimensions: 406mm(L) x 406mm(W) x 610mm(H)
Compliance CE Certified
NRTL or CSA certification is available upon request
Application Notes
  • In order to get better film coating, the substrate shall be treated with a plasma cleaner (Please click on the first picture below for more information)
  • Use an ultrasonic processor to disperse nanopowder or homogenize the solution to get better coating (Please click on the second picture below for more information)
  • Click here to visit our Knowledge Center and learn about dip coating
  •
