MTI  |  SKU: O1500HE520

1500C SiC Electric Heating Elements (520mm L) - OTF1500-HEL-520

€174,53

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1500C SiC Electric Heating Elements (520mm L) - OTF1500-HEL-520

MTI

1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600oC up to 1500 oC in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperature

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continuous working temperature 1550 oC
  • Replace heating elements for MTI GSL-1500X-OTF tube furnace only

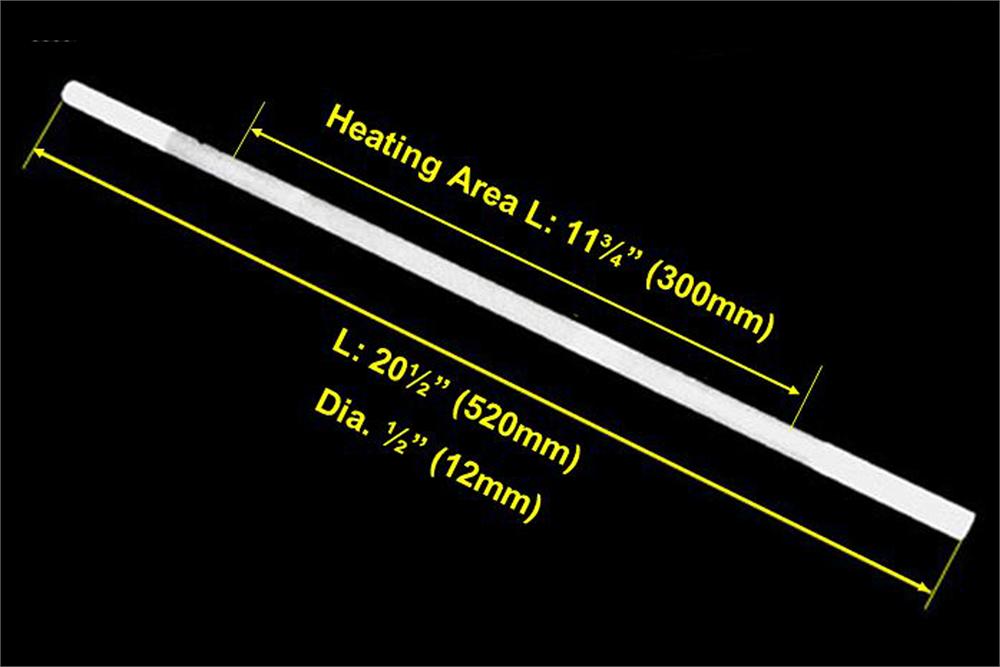

  • Dimension:

            0.5"(12 mm) Dia.
            11¾ " (300 mm) heating zone
            20.5" (520mm) overall length

  •    Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.


Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
