1500C SiC Electric Heating Element (413 mm L) - OTF1500-HEL-413

€161,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1500C SiC Electric Heating Element (413 mm L) - OTF1500-HEL-413

MTI

1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600oC up to 1500 oC in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperature

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continous working temperature 1400oC
  • Replace heating element for MTI OTF-1500X series tube furnace. (16 heating elements are needed for OTF-1500X-UL or OTF-1500X-II-UL, 24 heating elements for OTF-1500X-III-UL)

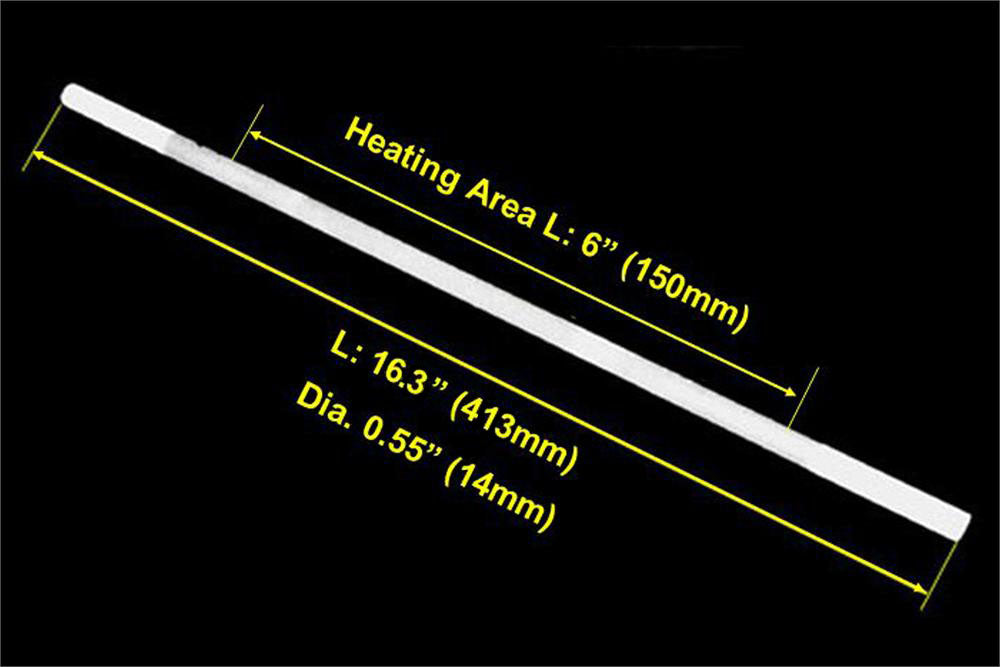

  • Dimension:
    0.55"(14mm) Dia.
    6" (150mm)  heating zone
    16.3” (413 mm)  overall length

  •    Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.


Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
All the heating element will be tested at it's highest working temperature before shipping, there might be some burned marks in the heating zone.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
