120L/min Oil Free Vacuum Pump-OFP-14

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

120L/min Oil Free Vacuum Pump-OFP-14

MTI

Specifications

Features
  • Compact design and low noise and vibration
  • Efficient cooling system and Maintenance-free
  • Longer running life and Ideal for small gas circulating system
  • Two Rubber Anti-Vibration Pads (Updated from 07/30/2015)
Voltage/Frequencies (V/Hz)
110/220 VAC 50/60Hz
(Please select the voltage in the options bar, 220VAC version doesn't include the power plug)
Note: As this pump doesn't feature a power switch, we recommend you use an extension outlet that enables remote power ON/OFF control.
Power (Watt)
 ?450W
Max. Air Flow
 ?7.2m^3/h (120L/min)
Vacuum
 80~100 torr (10665.8~13332.2 Pa)
Noise Level
 ?60dB(A)
Operation Temperature
 5-40°C
Insulation Class
 B
Cold Insulation Resistance
 ?100M?
Dielectric Strength
 1500V/50Hz 1min (No Breakdown)
Thermal Protector (°C)
 130±5°C (Automatic reset)
Net Weight
 17lbs
Production Dimension
290 L x 210 W x 213 H (mm)
Shipping Weight & Dimension 24 lbs, 18"x14"x14"
Inlet/Outlet connections
 1/4-18FPT
Compliance
  • CE approval
Warranty
  • One-year Warranty with lifetime support.
Warning

Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.

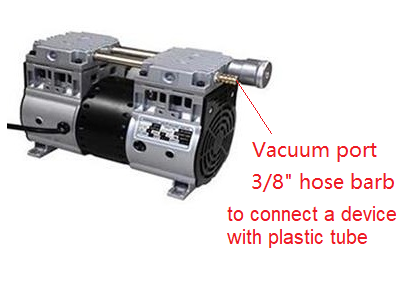

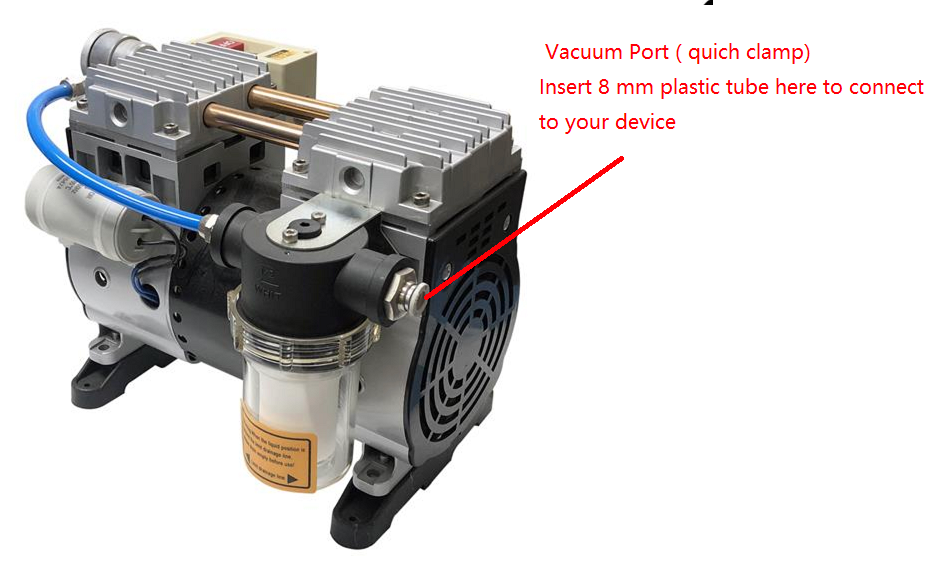

Inlet & Outlet connector
  • Inlet: one Ø8mm push-to-connect
    • Note: the Ø8mm gas tube is not included.
  • Outlet: One gas exhaust filter (included)
