MTI  |  SKU: NGOe050504S2

NdGaO3 (110) 5x5x0.4mm, 2 SP

€133,94

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

NdGaO3 (110) 5x5x0.4mm, 2 SP

MTI

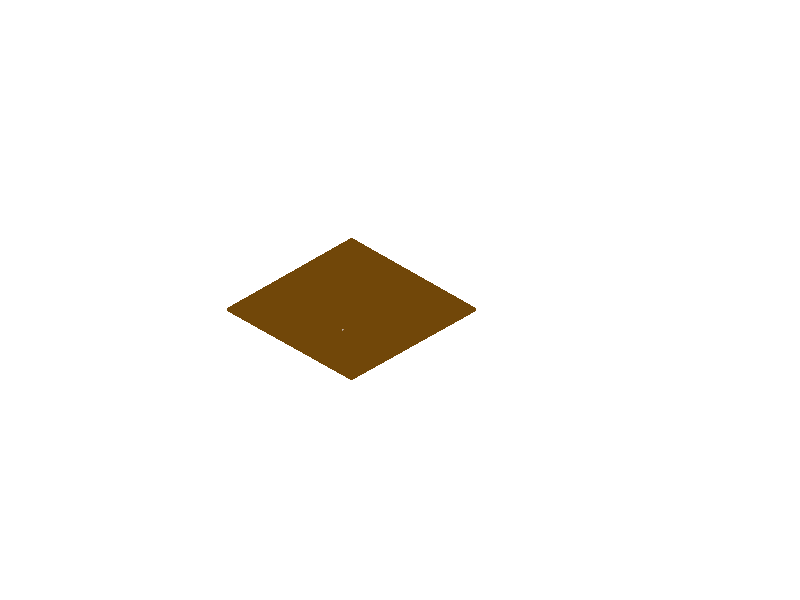

Single crystal NdGaO3  Substrate

  • Size:            5mm x 5mm x 0.4 mm
  • Orientation:   (110)
  • Polishing:     Two sides polished.
  • Surface roughness:  < 5A
  • Packing:      in 1000 class clean room with plastic bag

    Typical Properties of NdGaO3

    • Structure:                        Orthohombic
    • Lattice Constant(Å):              a=5.43      b=5.50      c=7.71
    • Melting Point:                   1600 oC
    • Density:                           7.57 g/cm3
    • Thermo-expansion:            7.89 x10-6/k
    • Dielectric constant            25
    • Loss tangent                    3x10-3
    • Hardness                         5.9 ( Mohs)
