MTI  |  SKU: NdCAOa101005S1

NdCaAlO4 (100) 10x10x0.5 mm, 1 side polished - NdCAOa101005S1

€147,47

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

NdCaAlO4 (100) 10x10x0.5 mm, 1 side polished - NdCAOa101005S1

MTI

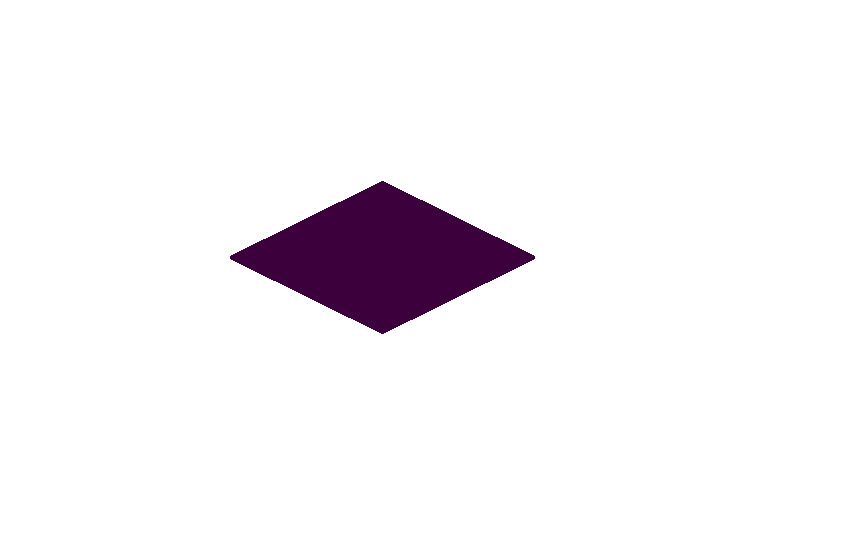

Single crystal NdCaAlO4  Substrate

  • Size:            10mm x 10mm x 0.5 mm
  • Orientation:   (001)
  • Polishing:      one side polished.
  • Surface roughness:  < 5A
  • Packing:      in 1000 class clean room with plastic bag

Crystal Propertis

Crystal  Structure /lattice constant
M.P.
oC
Density
g/cm3
 Thermo-Expans
x10-6/K
 Dielectric constant
 Lattice Mismatch to YBCO
 Max. Dia

NdCaAlO4

 Tetrag.a=3.685 c=12.12
 1850
 5.56
 12.0
 19.5
5.5%
CZ 35mm
