MTI  |  SKU: MSM-PS630

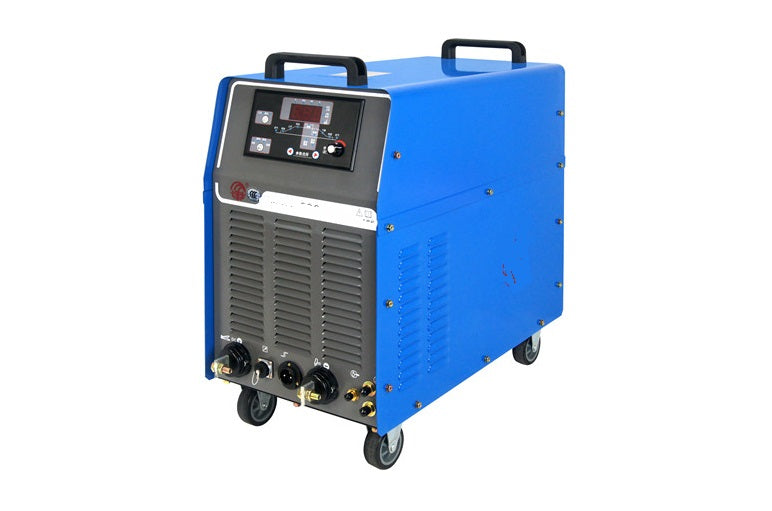

25KW 630A DC Power Supply for MTI's Arc Melting Systems - MSM-PS630

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

25KW 630A DC Power Supply for MTI's Arc Melting Systems - MSM-PS630

MTI

This is a power supply for MTI's arc melting system SP-MSM200.

SPECIFICATIONS
IGBT Type Module IGBT
Inverter Type Digital/Micro-controlled
Input Voltage/phase 460VAC,  3 PHASE, 50/60Hz
Input Current 30.75A
Power  24.5KW max
Output Voltage  0 - 34V (DC)
Output Rated Amps 20 - 630 A ( DC)
Pulse Frequency Range 0.1 - 100Hz
Duty Cycle 630A/34V @ 60% Duty Cycle
488A/29V @ 100% Duty Cycle
Efficiency ? >= 0.95 (Rated Value)
Power Factor ? >= 0.92
Arc Ignition HF Arc Starting
Dimension  620L x 310W x 580H ( mm)
Weight  42Kg
Warranty Three years limited manufacture warranty
