Heavy Duty Disc Cutter with 4 Sets Die (12, 15, 19 & 20 mm Dia.) & Optional 10 - 24 mm Die - MSK-T-06

MSK-T-06 (updated from EQ-T06-Disc, and color changed to green) is a precision disc cutter with max. the pressure of 600kN. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil in the range from 0.01 mm to 0.20 mm (such as Cu, Al, and stainless steel ). The resulting discs can be used as electrode/separator discs of the split test cell and coin cell for battery researchers.

Since 04/20/2017, the disc cutter comes with 4 cutting dies in 12, 15, 19, and 20mm.

SPECIFICATIONS:

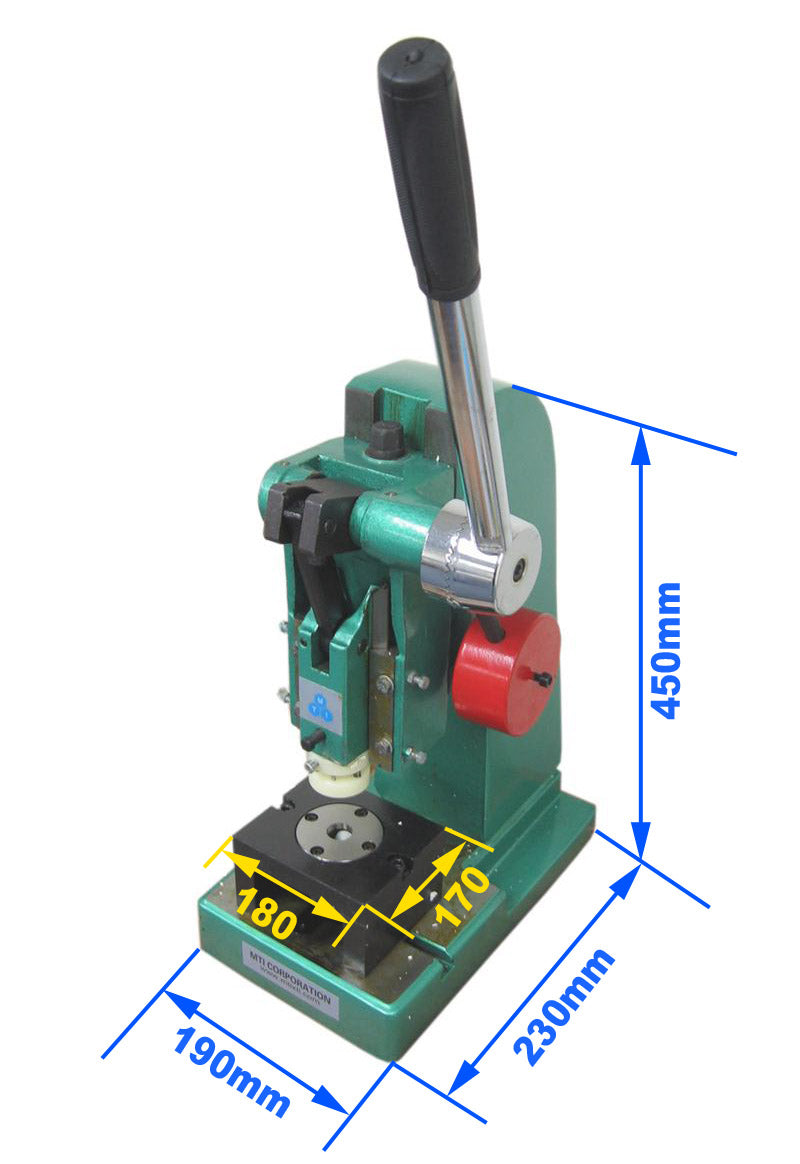

Max. Nominal Pressure	600 kN
Max. Stroke	40 mm
Max. cutting thickness	200 microns
Hole Diam. for upper mold insert	12 mm

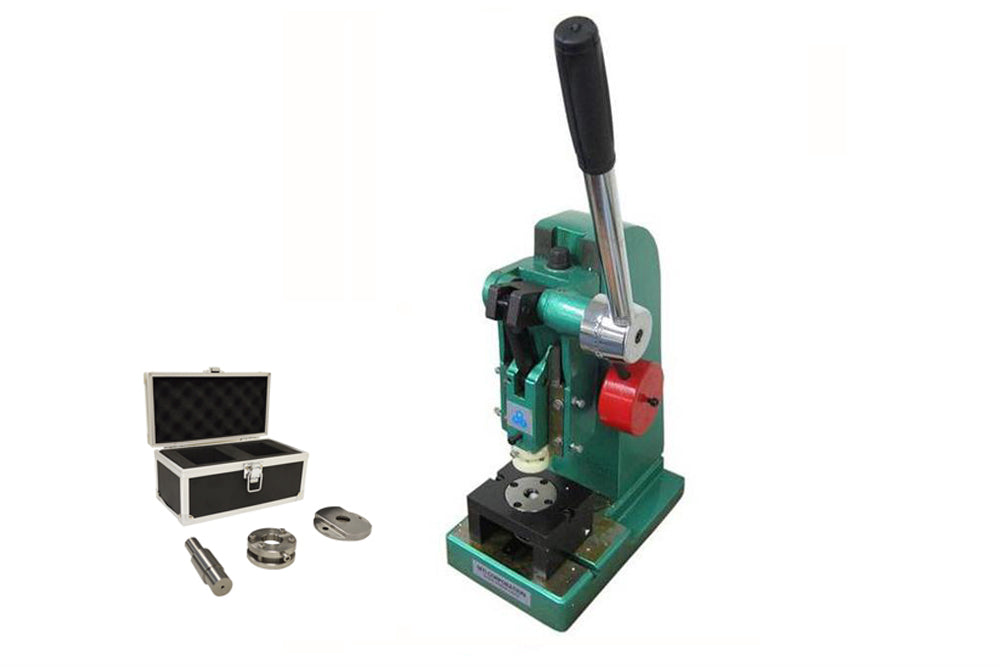

Cutting Dies	Four sets of cutting dies (12, 15, 19, 20 mm) are included in the standard package, which is made of hardening tool steel  15mm (for electrode discs of CR20xx series coin cell cases) 19mm (for electrode discs of CR20xx series coin cell cases and CR2325 negative side cases) 20mm (for electrode discs of CR2450 cell cases, CR2325 positive side cases, and separator discs of CR20xx series coin cell cases) Optional sizes available in 10, 12.7 (1/2''), 16, 18, 24 mm diameter at extra cost. 24mm (for electrode and separator discs of CR24+ cell cases.)   Cutting dies are made of carbon steel which is sensitive to moisture. Always keep the cutting die dry and neat.
Cutting thickness	0.01 mm - 0.10 mm for all type material with hardiness < RC 40 mm Note: Thicker foil will result in the shorter the life of the die
Compliance	CE Certified. With additional certification fees, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request. Patent Granted: 201220296271.2 for the Coin Cell Disc Cutter since January 2013
Application Notes	If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: 15mm (for negative side case, which is 16.5mm in diameter) 19mm (for positive side case, which is 20mm in diameter) 20 mm (for the separator to fully separate the electrodes in both negative and positive cases) For CR2450 coin cell, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting dies for either electrode or separator discs.  24 mm (for electrode and separator discs in CR24+ series or depending on customer's requirement) Need a compact cutter to cut material in the glove box? Please click the underlined to order MSK-T-07 or MSK-T-10 For cutting separator films, it is necessary to use transparent file covers to sandwich the film prior to cutting. This setup will stiffen up the film for ensuring smooth cuts on the edges of the disc. Warning: You must pay great attention to change die from one size to another. Mis-alignment will result in die damage. Please read the operation manual carefully when changing the die. MTI is not responsible for the damage caused by maloperation. Strongly suggest with buy several cutters with pre-installed die
