MTI  |  SKU: MSK-SFM-100U

Hi-Speed Vacuum Mixing & Dispersing Reactor up to 25K RPM with Optional 1- 10 L Container - MSK-SFM-U

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Hi-Speed Vacuum Mixing & Dispersing Reactor up to 25K RPM with Optional 1- 10 L Container - MSK-SFM-U

MTI

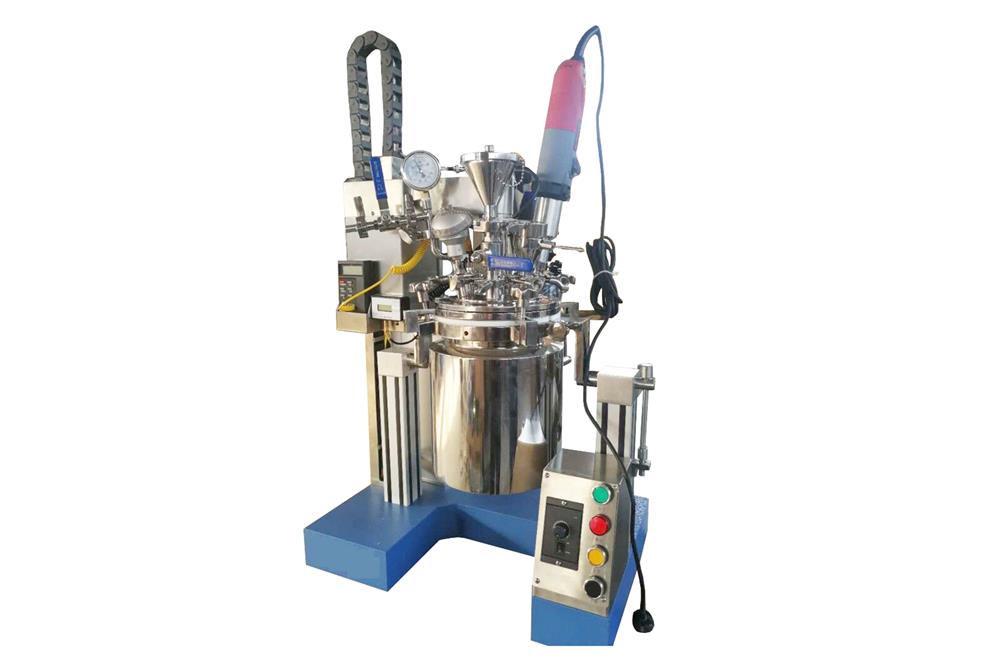

MSK-SFM-U is a beach-top liquid phase reactor with dual stirring blades (One anchor type Blade and one high speed dispersing blade 25,000rpm). With the advantage of high-shear mixing, it has the capability to prepare battery slurry and co-precipitating chemical, and corrosive solutions.

SPECIFICATIONS

Structure & Features
  • Various mixing containers with different capacities and materials. Choose in the optional bar.
  • Dual stirring blades:
    • one anchor stirring blade with Max speed 200rpm
    • one ultra-high-speed dispersing blade with 5,000 - 25,000rpm
  • Vacuum sealed cover, which can be lifted or lowered by the electric motor
  • One thermal couple insert port for monitoring reacting temperature
  • The liquid input port allows to add additions during mixing
  • Compact footprint (600L x 400W, mm), which can be placed on beach top
  • Slurry viscosity range: 0 - 15000cp
Power Supply
Container
  • available mixing containers as the following; all type of containers have the water cooling jackets and the vacuum ports, Please choose from the options bar
    • 1 Liter 316 stainless steel (capacity: 1.2L)
    • 2 Liter 316 stainless steel (capacity: 2.4L)
    • 5 Liter 316 stainless steel (capacity: 6L)
    • 10 Liter 316 stainless steel (capacity: 12L)
Stirring Blade
  • For 1~5L containers
    • Main Blade: Anchor stirring blade, 100mm dia., 0 - 200rpm
    • Dispersing Blade: High-speed blade, 25mm dia., 5,000 - 25,000rpm
  • For 10L container
    • Main Blade: Anchor stirring blade, 100mm dia., 0 - 200rpm
    • Dispersing Blade: High-speed blade, 30mm dia., 5,000 - 25,000rpm
                   Anchor Blade  Dispersing Blade
Optional Blade
  • Fix Anchor High-Speed Dispersion Blades are available upon request.

Mixing Capacity
  • 1L Container: 300 - 600ml for mixing
  • 2L Container: 300 - 1500ml for mixing
  • 5L Container 1000 -3500ml for mixing
  • 10L Container: 2000 -6000ml for mixing
Thermal Couple
  • One K type thermal couple is inserted into the container for monitoring liquid temperature
Optional
  • One Vacuum pump with KF25 Port is required for vacuuming the reactor container, however, the vacuum pump is NOT included in the standard package.
  • Connecting a water chiller to the reactor container will help cool off the sample, the water chiller is also NOT included in the standard package.
  • Please click the pictures below to order the vacuum pump and the water chiller if needed.
Compliance
  • CE Certified
  • NRTL Certification or CSA is available upon request at extra cost
