Automatic Roll to Roll Device with Alignment Function for Any Rolling Machine (< 300 mm 12" width) - MSK-E2300RD

MTI

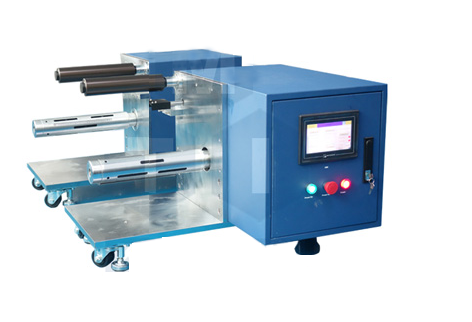

MSK-E2300RD is an automatic Roll to Roll device designed to change any rolling machine into an automatic roll-to-roll rolling machine with a width <= 300mm. The reeling device is controlled by substrate tension force to match any rolling speed. An optical sensor is built in to rectify a deviation in width and achieve precision reeling.

SPECIFICATIONS:


Working Voltage

Max. Power Consumption
  • 500W

Control Panel
  •  7 " color touch screen control panel for adjusting tension force and deviation correction
  • Reeling Tension force : 0 - 99N adjustable to match different speed levels
  • Alignment functiuon is included with accuracy of +/- 0.5 mm.

Reeling Width
  • <= 300 width for any material

Reeling/Unreeling Shaft
  • 75mm O.D

Compliance
  • CE certified
  • UL-ready component to ensure pass UL and CSA certification at extra cost

Warranty
  • One-year limited warranty with lifetime support
  • Rusting and damage due to improper storage conditions or maintenance are not covered by a warranty

Application Notes
  • This roll-to-roll device is specially designed for MTI MSK-HRP-03 and MSK-E2300A
  • it also can be used for any rolling machine as long as < 300mm, and plug the power of your rolling machine into the R2R device
  • It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gases & vapor).
