Compact Disassembling Machine for 18650, 21700 or 4680 -46110 Cylindrical Cases - MSK-4680

MTI

MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:
Supply Voltage

 		Shaft: DC 12V, 60W
Cutter: DC 18V, 18W
(110~240VAC to DC power adapters are included)
Slicing Motor Speed 14000 rpm Max
Shaft Rotating Speed 12000 rpm Max
Compatibility Compatible with 18650, 21700, and 4680 Cells.

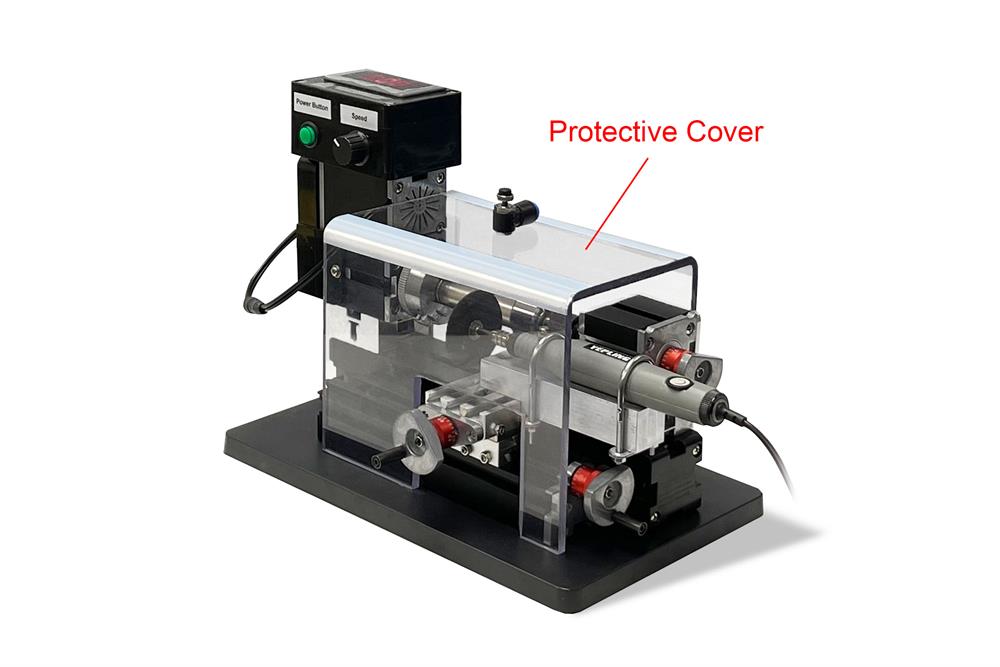

Protective Cover

 A protective cover with a controlled gas inlet is included for protection.
Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Warranty
  • One year limited with lifetime support (Consumable part such as the cutting blade is not under the coverage of warranty)
  • Parts rusted without regular cleaning and maintenance are not covered by the warranty
Product Dimensions

190 x 310 x 250 mm (W x D x H)
Its compact size allows it to be transferred into the glove box with the large antechamber.

Accessories
  • 12 pcs Fiberglass Reinforced blades are included.
  • Die set for cutting 18650, 21700, and 4680 cells are included
  • Additional blades are available upon request.
Net Weight 10 kg
Shipping Weight & Dimensions 50 lbs; 10"x15"x12"
Operation Video
Attention Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.
