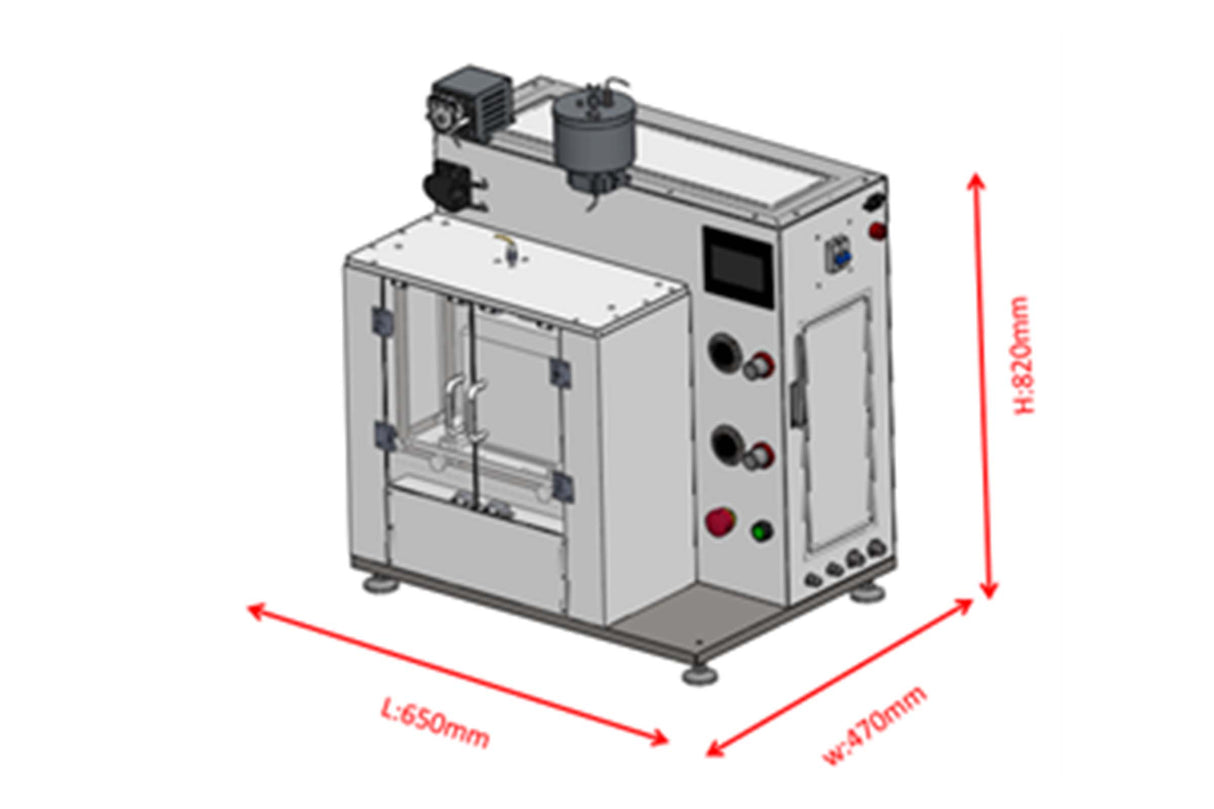

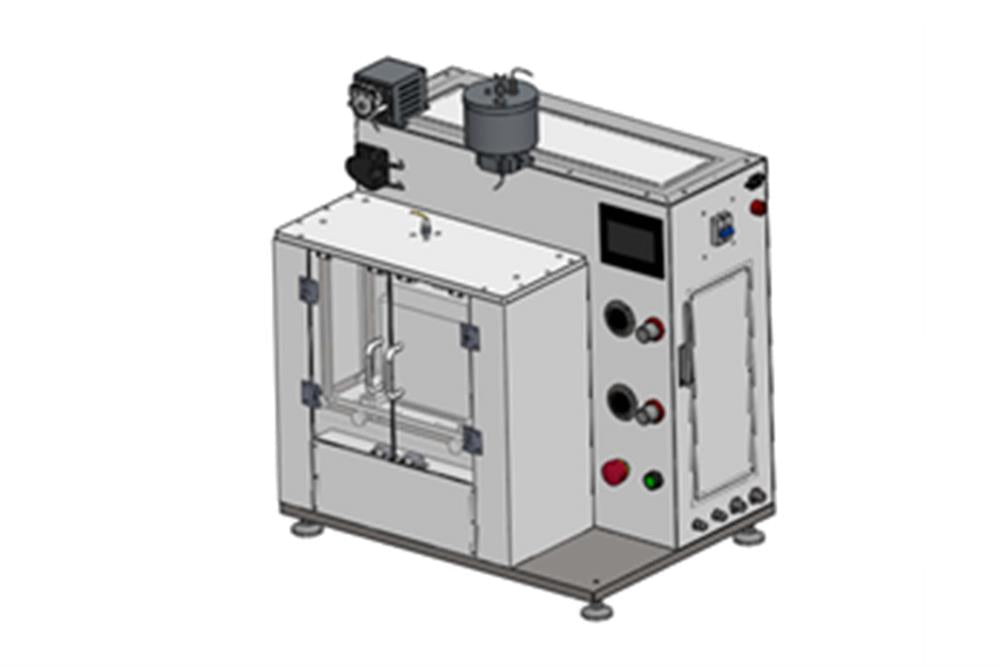

Compact Vacuum Electrolyte Injection System for Prismatic Cells - MSK-113-SVM

 Input Power

• AC 208 - 240 V, 50/60Hz, Single phase (AC 110V is available upon request)
• Power: 1KW

 Electrolyte Dispenser

• An electrolyte plunger metering pump is included for precise electrolyte filling;
• During the electrolyte injection and vacuum standing under the vacuum, the liquid electrolytes would be vaporized.
• Please consider refilling the electrolyte if necessary
• Electrolyte filling volume and injection rate adjustable via touch screen PLC control

 Electrolyte Tank

• Max. 300ml

 Cell Size

• Max. L 175 mm * W 73 mm * H 205 mm

 Injection Accuracy

• Electrolyte Volume (g)	5g	50g	100g
  Injection Accuracy	±2%	±1.5%	±1.2%

 Injection Time

• For prismatic cells requiring 6g electrolyte, the estimated injection time is less than 4 mins.
• (The estimated time is for reference only, the time may change subject to the actual circumstances.)

 Prismatic Cell under Pressure

• Maximum applied pressure 120 KPa, adjustable

 Vacuum Rate

• Maximum - 95 KPa, adjustable

 Vacuum Pump (not included)

• Double-stage rotary vacuum pumps are needed for vacuum diffusion, degassing, and vacuum sealing.
• Please click the picture on the left to purchase separately.

 Working Gas

• 0.5~0.8 MPa high purity compressive inert gas (Ar is preferred) is required for driving the pneumatic system in the glove box
• Continues dry inert gas purging for the working chamber is required to maintain a dry atmosphere for electrolyte injection and diffusion
• Air compressors and fitting are required if used in the dry room, but not included. please click here to order
• Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
•
      pic1               pic2

 Compliance

• NRTL Certification is available upon request at an extra cost

 Application Notes

• Please clean the sealing dies after each use. Clean the sealing die after it has cooled down to avoid corrosion by the electrolyte.
• The featured air-tight chamber enables the operation under the Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, will be assembled. Please click the images below to understand these technologies and how it fits in a glove box.
• Please add the high-precision digital balance on the left to the chamber to monitor and evaluate the liquid electrolyte lost during the vacuum electrolyte injection. Because there might be some liquid electrolyte evaporation caused by the pressure difference between the liquid electrolyte tank and the vacuum chamber.
