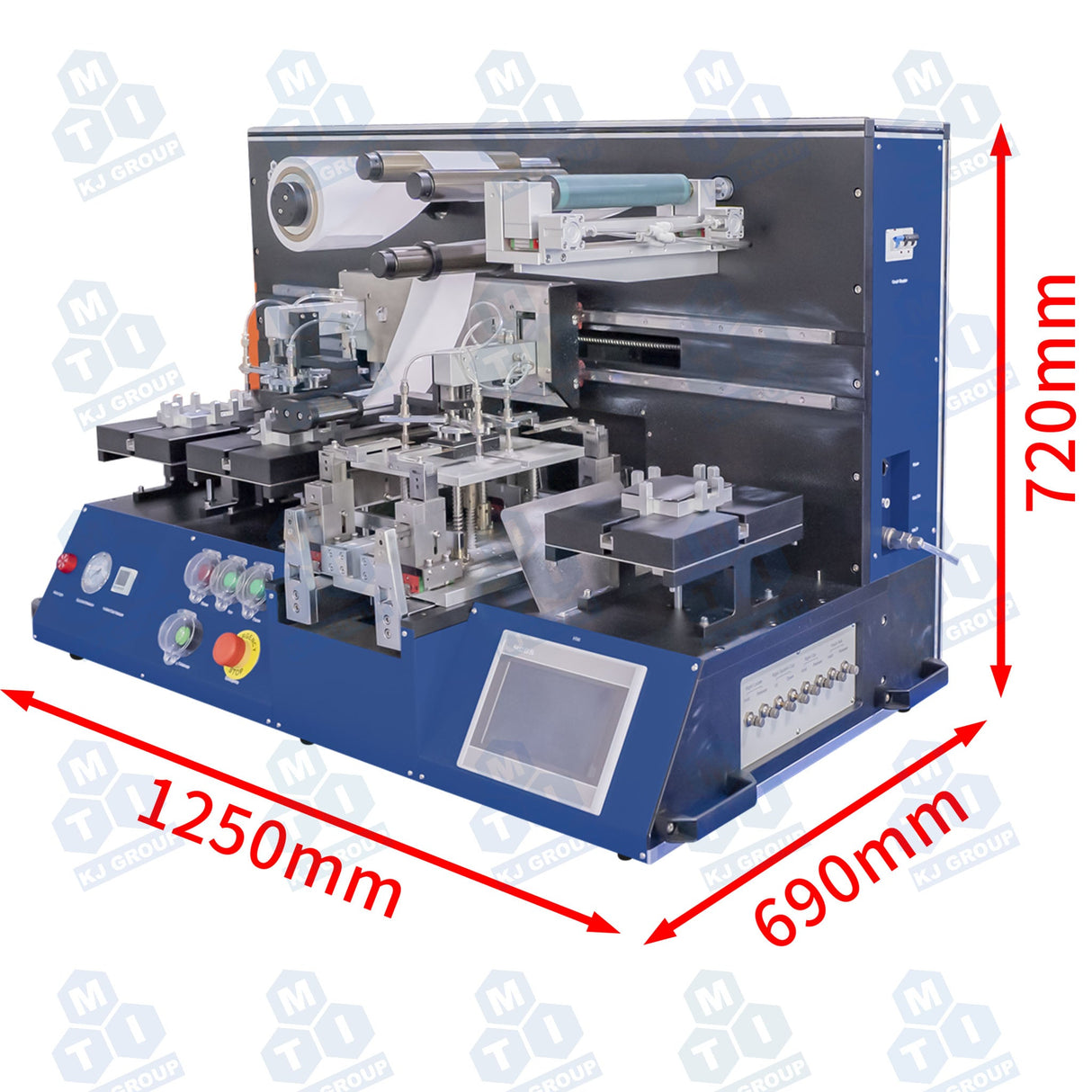

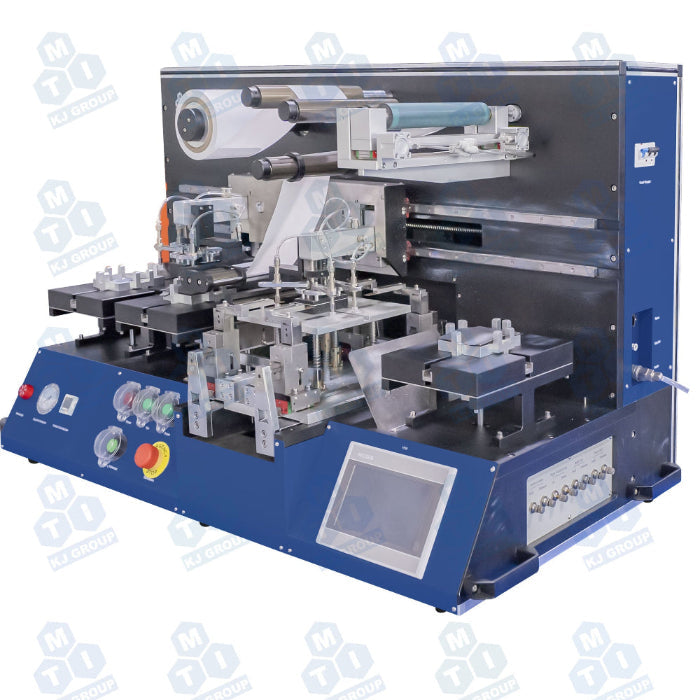

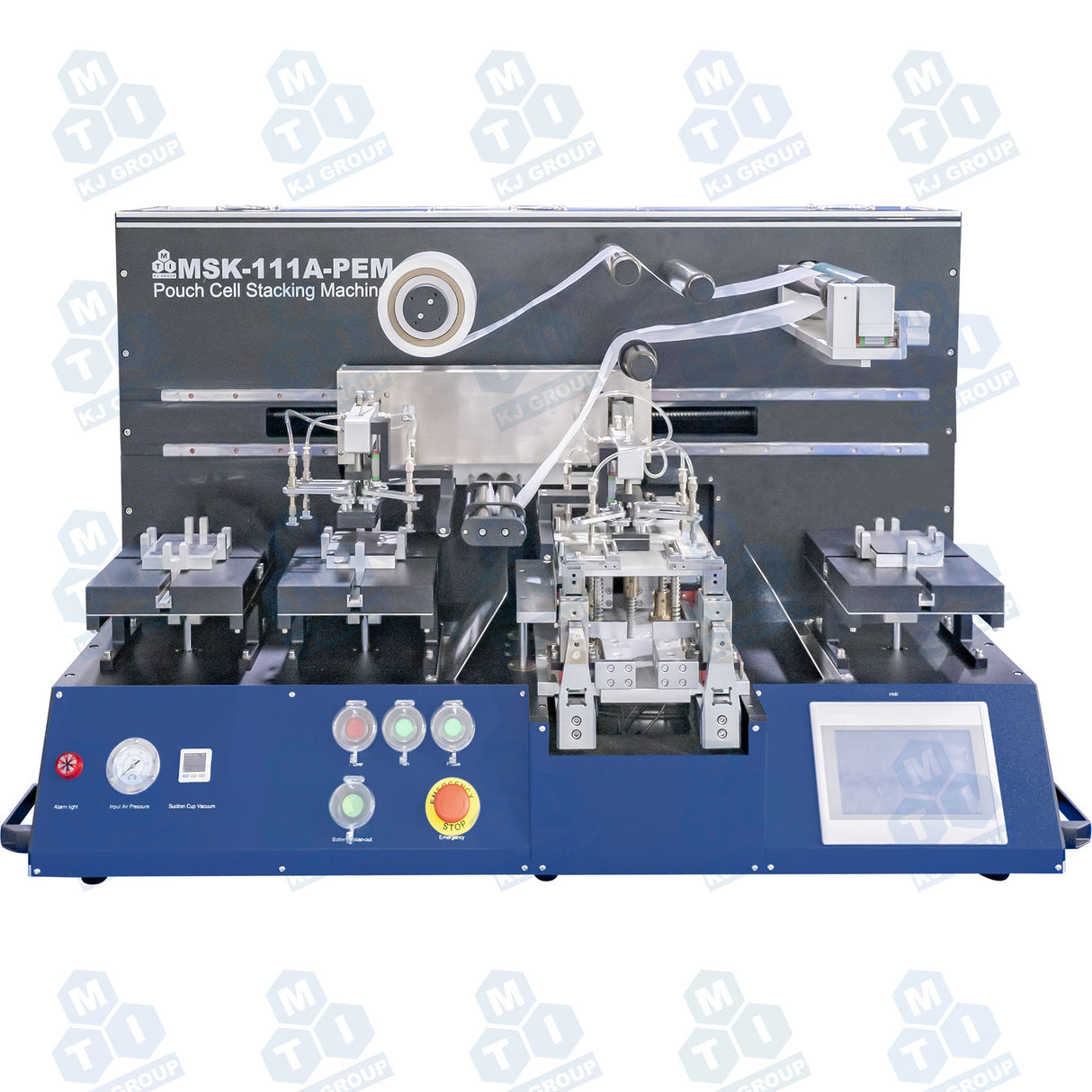

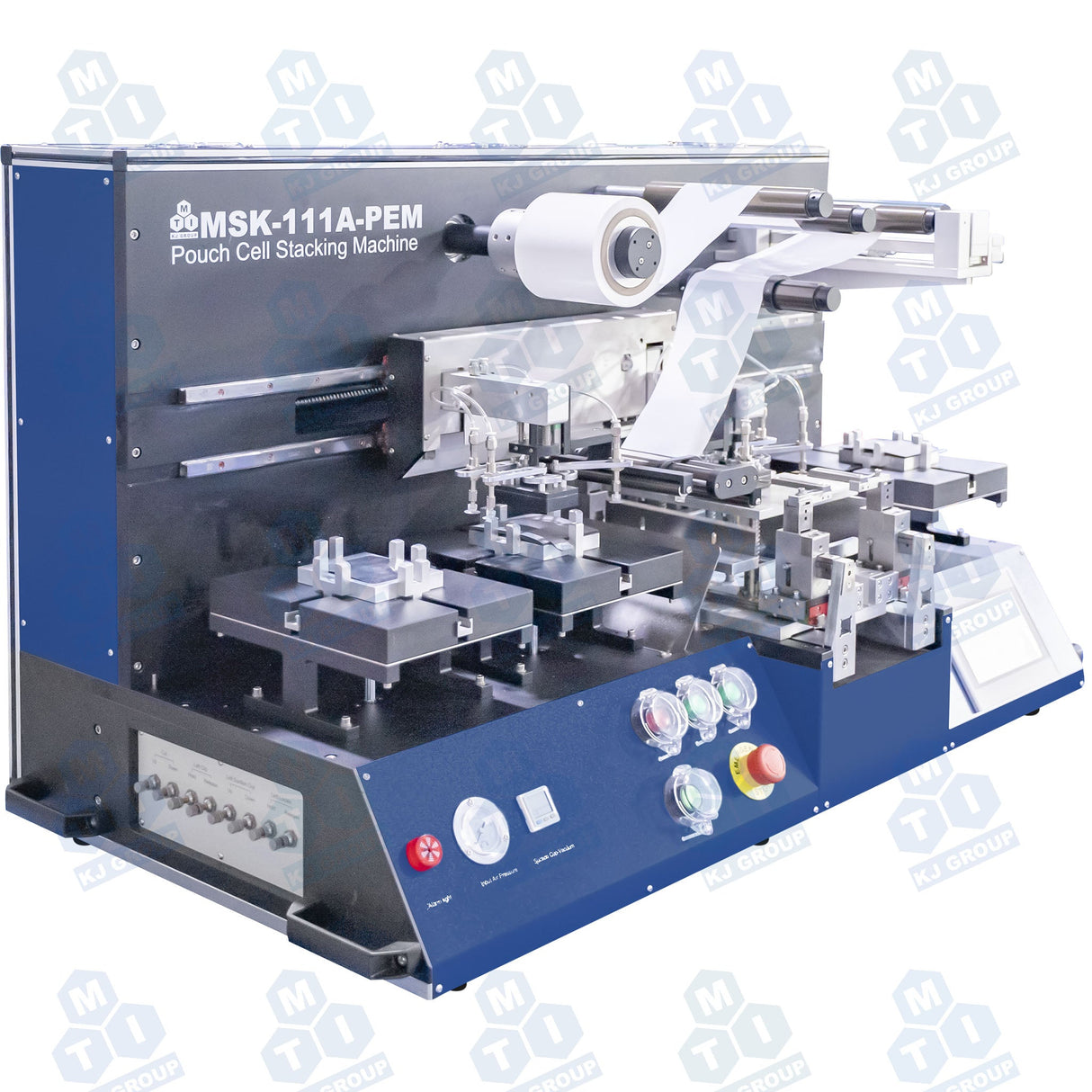

Large Automatic Pouch Cell Stacking Machine with Hybrid Stacking Modes (Max.200 mm L x 150 mm W), Glovebox Compatible - MSK-111A-PEM

MSK-111A-PEM is a large high precision automatic stacking machine with hybrid stacking modes (regular Z-type stacking and piece-by-piece sequence stacking). The maximum acceptable electrode size is L 200 mm * 150 mm W. The stacking machine is compatible with glovebox that is filled with Argon gas to ensure no air/humidity exposure during pouch cell electrode stacking.

• Advanced Features:
• Compatible for stacking for both regular electrodes and pure Lithium anode electrodes in the Ar glove box or dry room.
• Hybrid stacking modes of regular Z-type stacking and piece-by-piece sequence stacking for solid-state battery application.
• PLC Touch Screen Control allows easy control
• Auto electrode pick-up & stacking via vacuum manipulators
• Auto separator cutting and feeding for each battery.
• Adjustable mechanical electrode fixture for accurate electrode positioning
• Auto tension-controlled rotor for separator feeding
• One set of 80x50mm stocking die fixtures is included for immediate use.

SPECIFICATIONS:

Working Voltage	AC220V 50/60Hz AC 110V version is available upon request
Power	400 W
Stackable Size of electrode	Max. stacking electrode size: 200 mm Length x 150 Width (current collector tab is not included) Please indicate the electrode size for stacking die customization
Stacking modes	Z-type stacking: polymer roll as separator for liquid-type lihitum ion battery. Step-by-Step sequence stacking: Solid-state electrolyte with plate shape as separator.
Stacking Speed	4 - 6 seconds/layer (normal electrodes); 6-8 seconds/layer (Li metal)
Max. Electrode Thickness	~ 20 mm
Current Corrector Tab Length	Max. 15 mm
Aligning Accuracy	±0.3 mm for stacked electrodes
Acceptable Separator Size	Polymer Roll:  I.D>3'' (76mm), O.D<9.8'' (250mm) Please choose the corresponding separator size according to the electrode size A roll of separator with width of 60 mm will be provided for expeirmental trial Solid-state electrolyte plate as separator: 203 * 153 mm
Stacking Fixture	One set of stacking die fixtures is included for immediate use (customer shoud tell us the dimension they want). If you need different size electrode stacking, please inform us before order. We will make it for you at extra cost. Allowable customization size: Max. 200mm x 150mm; Min. 100 mm x 50 mm; Each size cell needs one mold.
Operation in Glove Box	The Pouch Cell Stacking Machine can be operated in the glove box in either N2 and Ar gas
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator   pic1  pic2
Transparent Cover	The transparent cover is optional at an extra cost for the NRTL Certificate
Compliance	CE Certified NRTL certificate is available upon request at extra cost
Application Notes	This machine can be put in a glovebox and operated in Ar gas. For the Lithium-sulfur research, please send the request for the special technique to do the pure lithium foil stacking. MTI Supplies ready-to-use Cathode & Anode Electrodes and Laminated Aluminum Pouch for your research MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D
