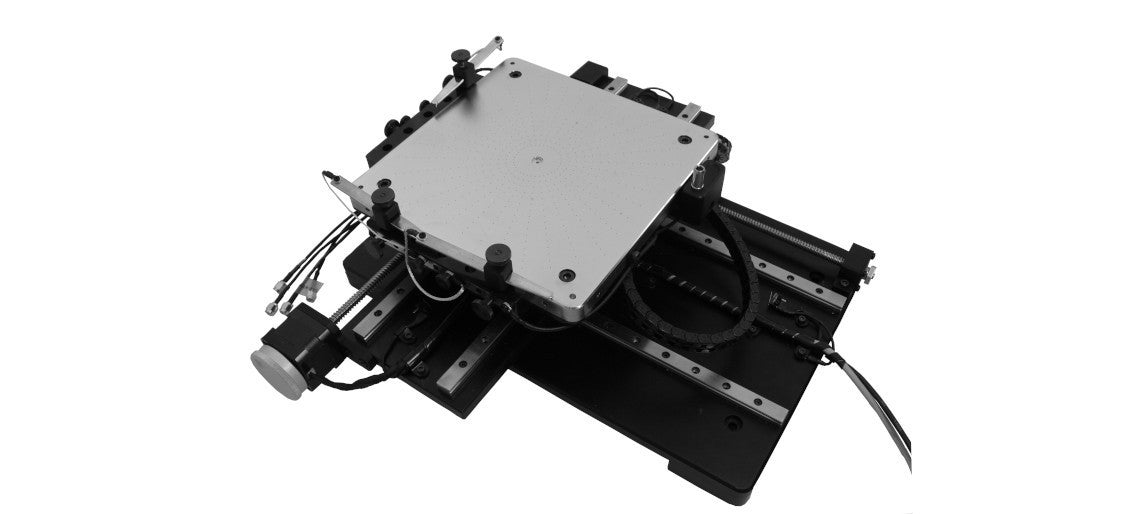

Motorized multi-axis vacuum table precise sample positioning

Description

Motorized Multi-Axis Vacuum Table is a compact solution which may be used in wide range of applications where the precision of positioning is significant. The table is equipped with a vacuum system for holding a sample in place.
The table may be equipped with a built-in light sensor of any type, installed at the table surface. An additional metallic coating may be deposited on the table surface to provide appropriate electrical contact with the sample.

Specification

Motorized and Manual regulation of position in two axis: X and Y,
Stroke in X and Y axis: 20 cm,
Movement precision: 0.01 mm,
Manual regulation of table height in Z axis,
Stroke for Z axis: 12 mm,
Maximum sample size: 20 x 20 cm,
Vacuum system for sample holder,
Optional table surface coating: golden or chromium,
Optional contact electrodes, manually placed at any point of the sample,
