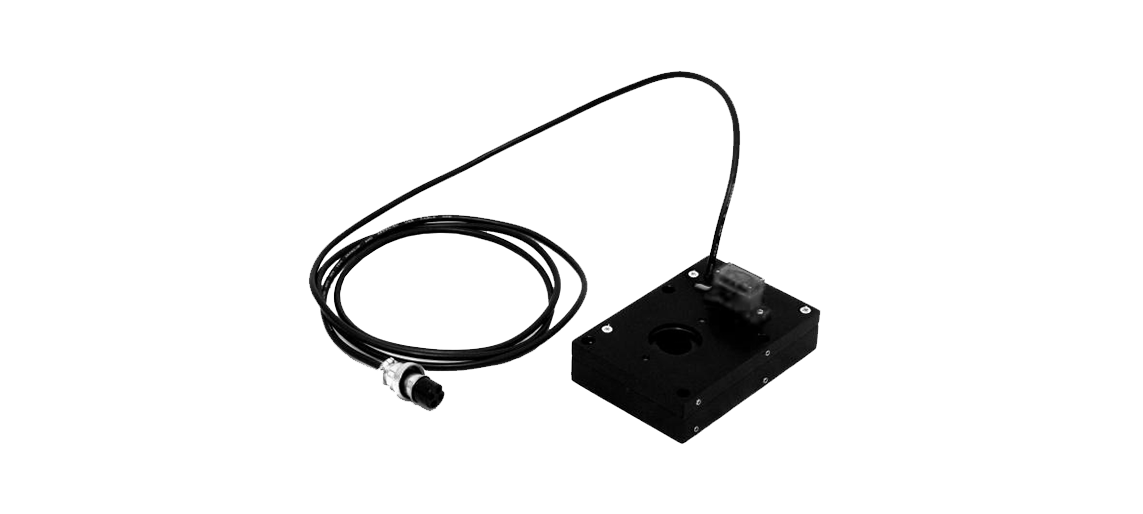

Motorized iris diaphragm The device is equipped with servo motor for automatic mechanical adjustment of a light beam size and intensity

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Motorized iris diaphragm The device is equipped with servo motor for automatic mechanical adjustment of a light beam size and intensity

Instytut Fotonowy

Specification

The device is equipped with servo motor for automatic mechanical adjustment of a light beam size and intensity

100 possible positions of the iris
Maximum aperture: 25 mm
Minimum aperture: 0 mm
Controled via RS232
Power: 5 V
Housing made of anodized black aluminum
Dimensions: 105 x 72 x 35 mm
