MTI  |  SKU: FA-808P-X3

MET Certified Precision Temperature Controller with 30 segement programmable - FA-YD808P-X3

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

MET Certified Precision Temperature Controller with 30 segement programmable - FA-YD808P-X3

MTI

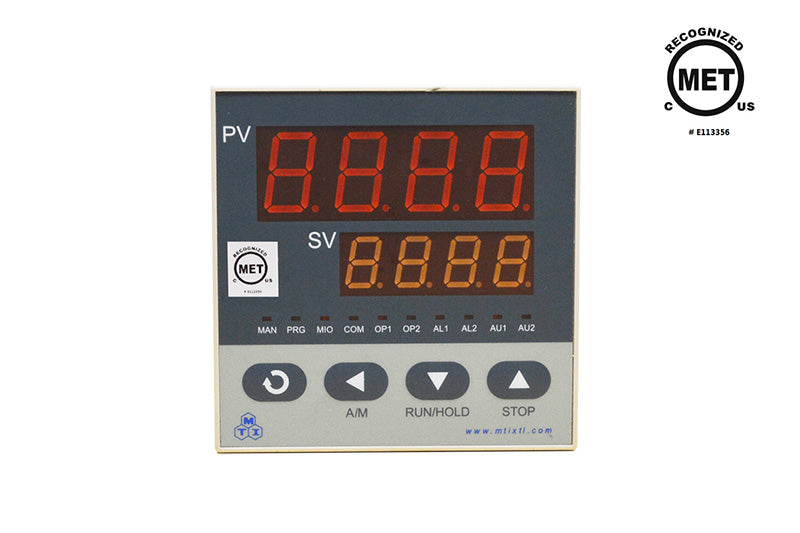

FA-808P-X3 High Precision temperature controller is MET certified. It adopts PID parameter control method which precisely controls temperature with +/-1C accuracy. It has built-in function modules which can work with Solid Relay to optimize the furnace performance according to different models of furnaces.

Please click the link to know how to use this Precision temperature controller

  • PID automatic control
  • K,S,R,T,E,J,B,N,WRe3-WRe25, WRe5-WRe26,Cu50, Pt100, Analog signal
  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • FS +/- 1 ºC temperature control accuracy.
  • Sampling Rate: 250ms
  • Using X3 PCB Module, having selectable 4-20mA or 0- 20mA output for MTI high-temperature furnace ,like GSL-1700X,KSL-1700X
  • RS485 Communication Port.
  • Software is included
  • Met certified
  • The controller may be operated by PC by installing a control module with MTI software included. It suits
  • If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer laptop (please select the "computerized tool" in the options bar) from us to avoid software installation problems. For more information please click here.
  •
