MTI | SKU:
LSGMb050505S2
LSGM Single Crystal Substrate, 5x5x0.5 mm,< 001> ori. 2SP
€110,40
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
LSGM Single Crystal Substrate, 5x5x0.5 mm,< 001> ori. 2SP
€110,40
Unit price
/
Unavailable
LSGM Single Crystal Substrate, 5x5x0.5 mm,< 001> ori. 2SP
MTI
-
Orientation: (001) +/-2 o
-
Size: 5mmx5 mm x 0.5 mm
-
Polish: two sides optical grade polished
-
Surface finish (RMS or Ra) : < 10A
- Packed: each in membrane box

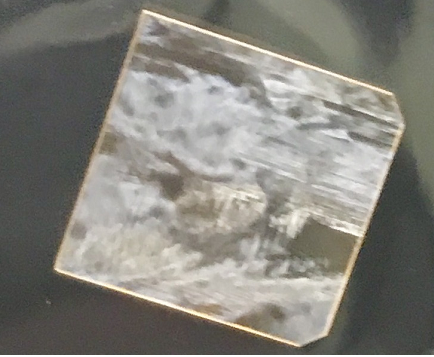

- Note: there is a twin structure Visibale on polished surface
| Chemistry | La0.95Sr0.05Ga0.95Mg0.05O3-? (LSGM) |

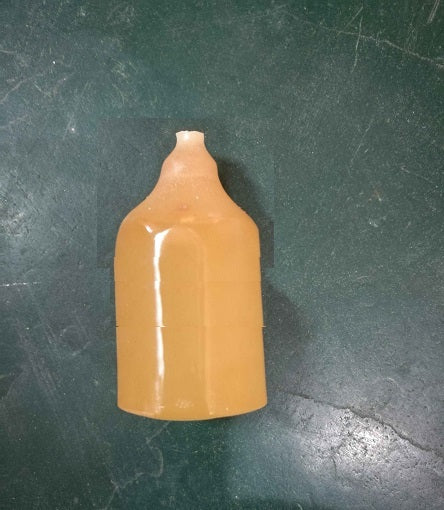

| Crystal growth method | CZ |
| Crystal Structure | a = 5.493 Å, b = 5.533 Å c=7.782 Å |
| Melting point | ~ 1500oC |

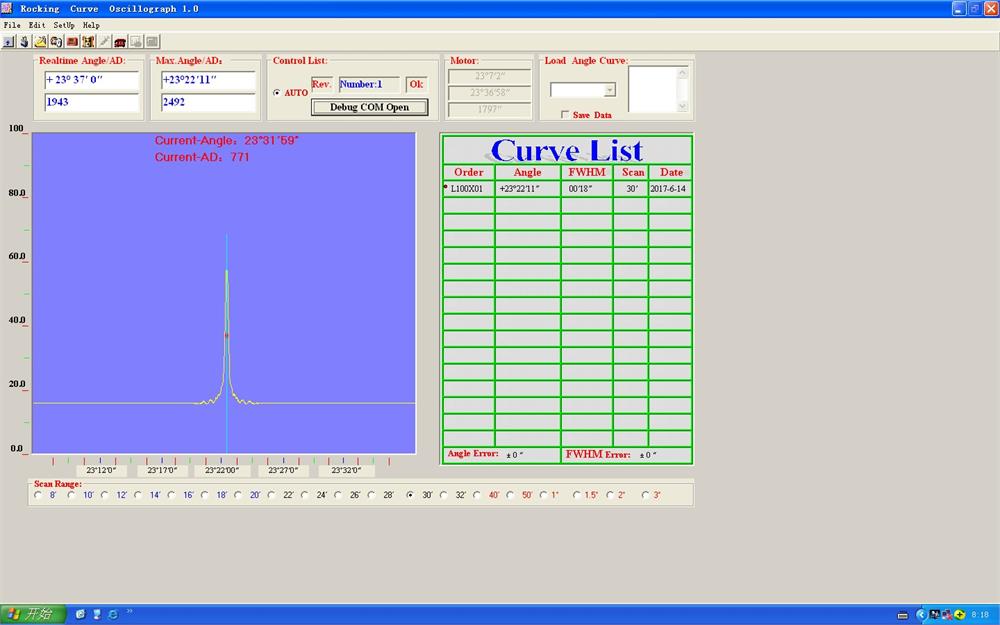

| Note | LSGM is new crystal for MTI. We still is in R&D to improve the quality We found many domain or tiwn defect in side single crystal similat ot LaAlO3 which results in crystal rocking curve splited as below.  Usually the defect dose not effect film growth. The buffer layer may be needed to ge better epi filmWe don;t accept the return because the defect Thank you for help us to R&D new single crystal |
| References | |
| Note |

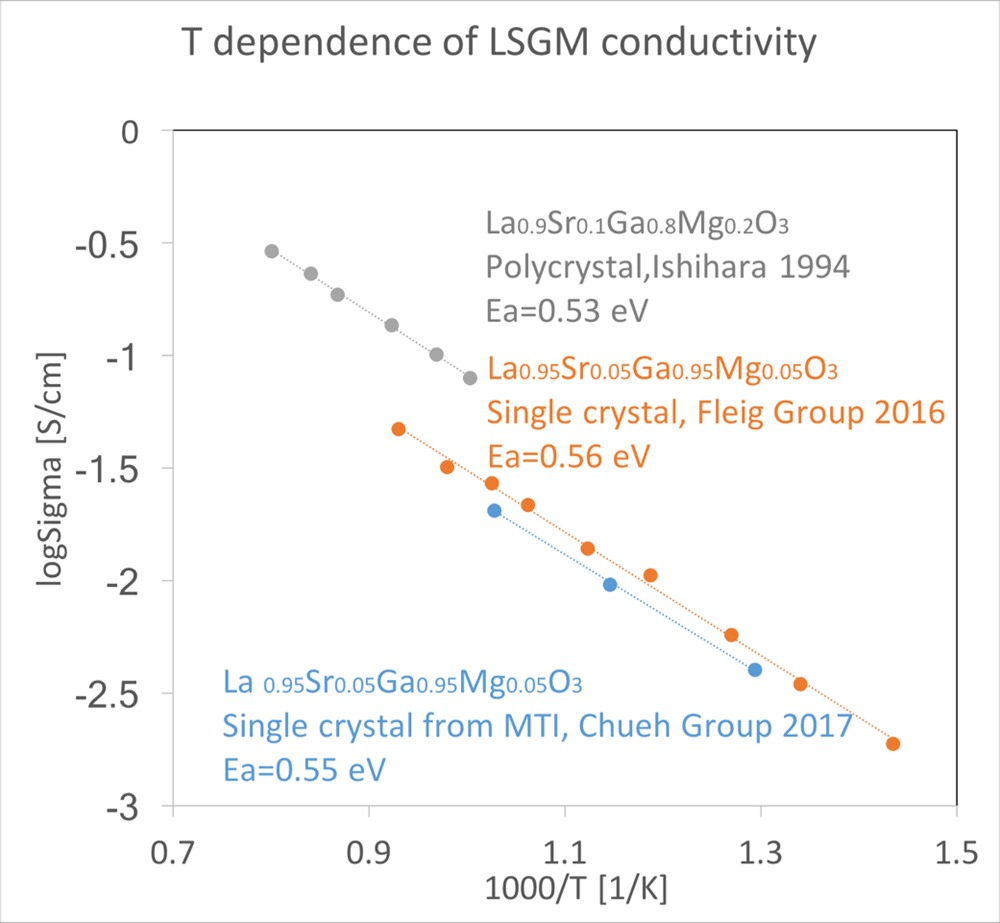

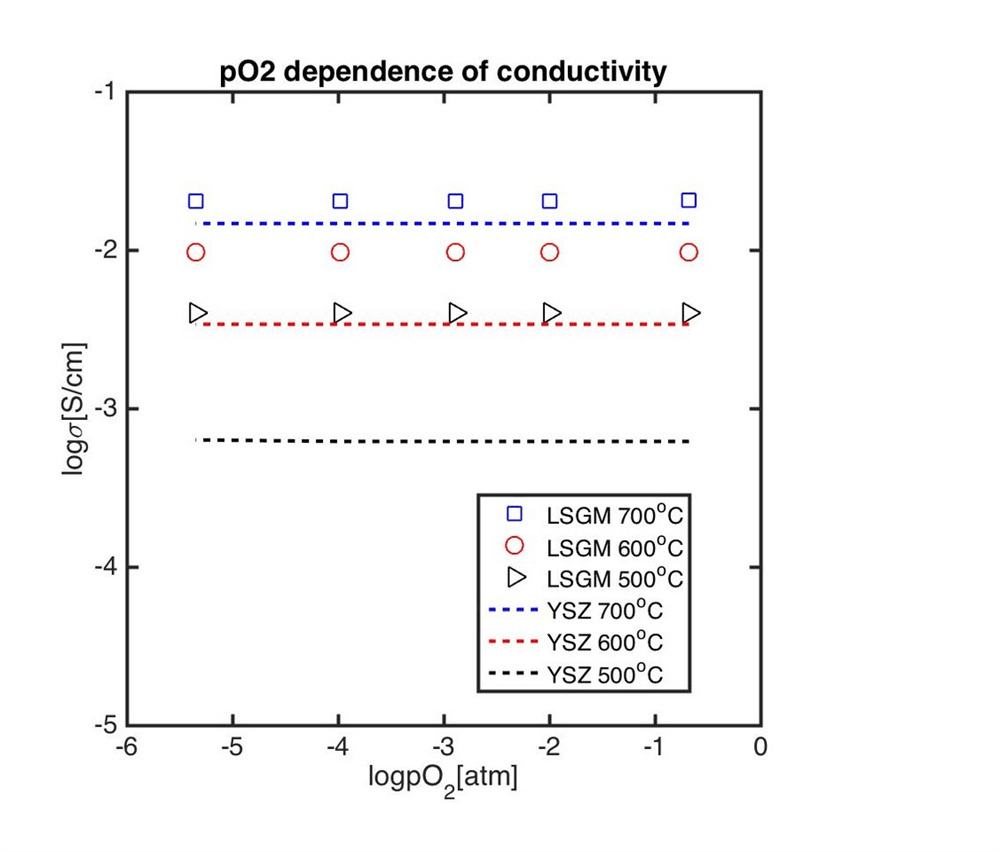

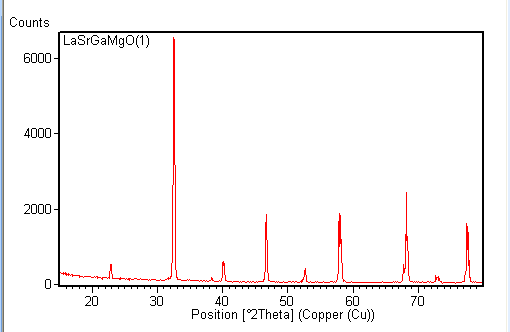

Powder XRD Resistivity vs Temp Resistivity vs p O2
