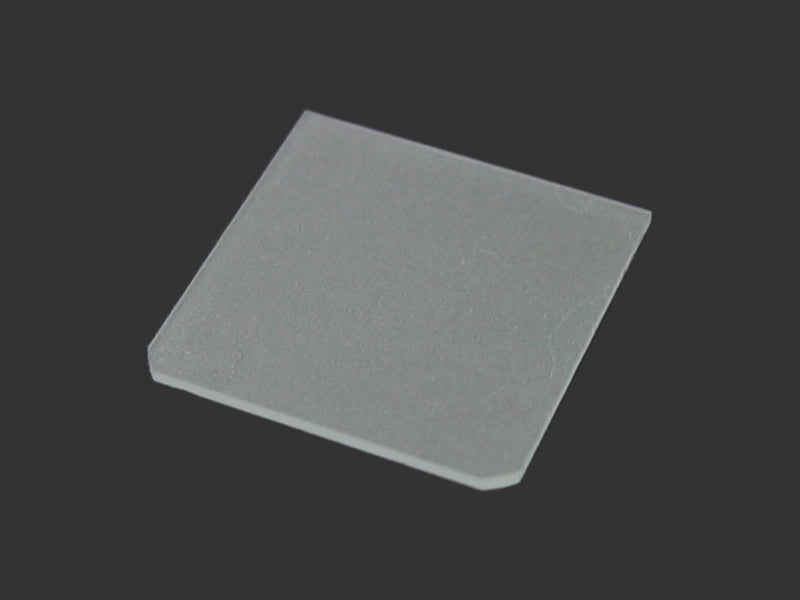

LaAlO3 (100) orn 5 x 5 x 0.5 mm substrate , 2 side Epi polished - LAOa050505S2

€22,94

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

LaAlO3 (100) orn 5 x 5 x 0.5 mm substrate , 2 side Epi polished - LAOa050505S2

MTI


Substrate Specifications:

  • Wafer Size:     5 x 5 x  0.5 mm thickness +/-0.05 mm,
  • Wafer Orientation:   (100) +/-0.5 Deg
  • Polishing:   Two sides CMP polished with free sub-surface damage.
  • Surface finish (RMS or Ra) :  < 10A
  • Package:    Under 1000 class clean room, and in a 100-grade plastic bag in a wafer container.
  • Lattice Constant   a=3.792Å Pseudo cubic

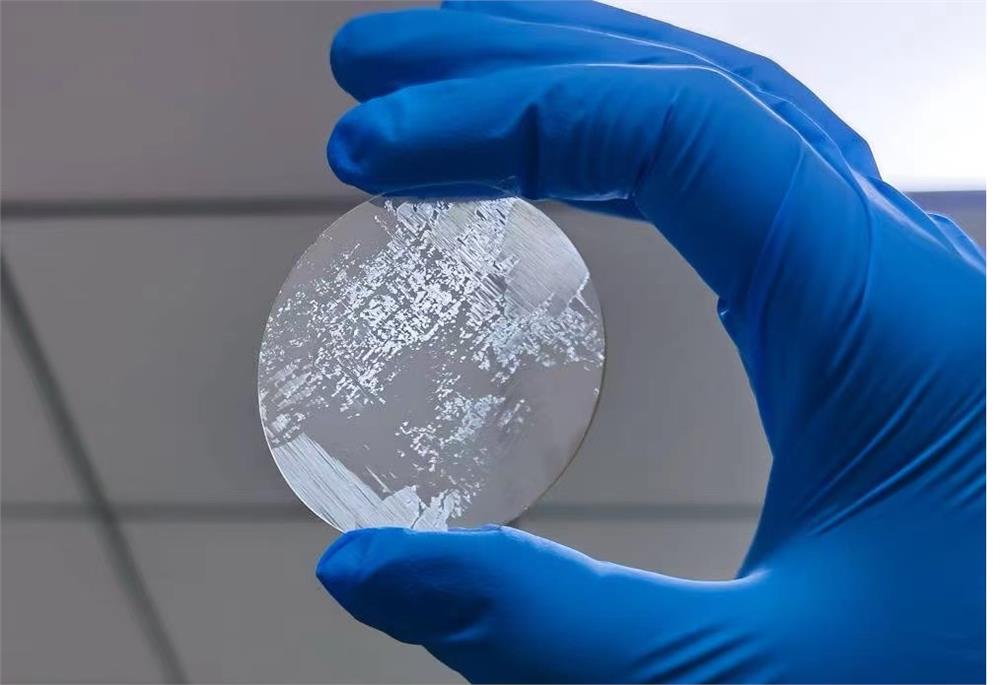

  • Warning:     LaAlO3 crystal has a visible twin on a polished surface, which is of normal nature., please picture below
  •
