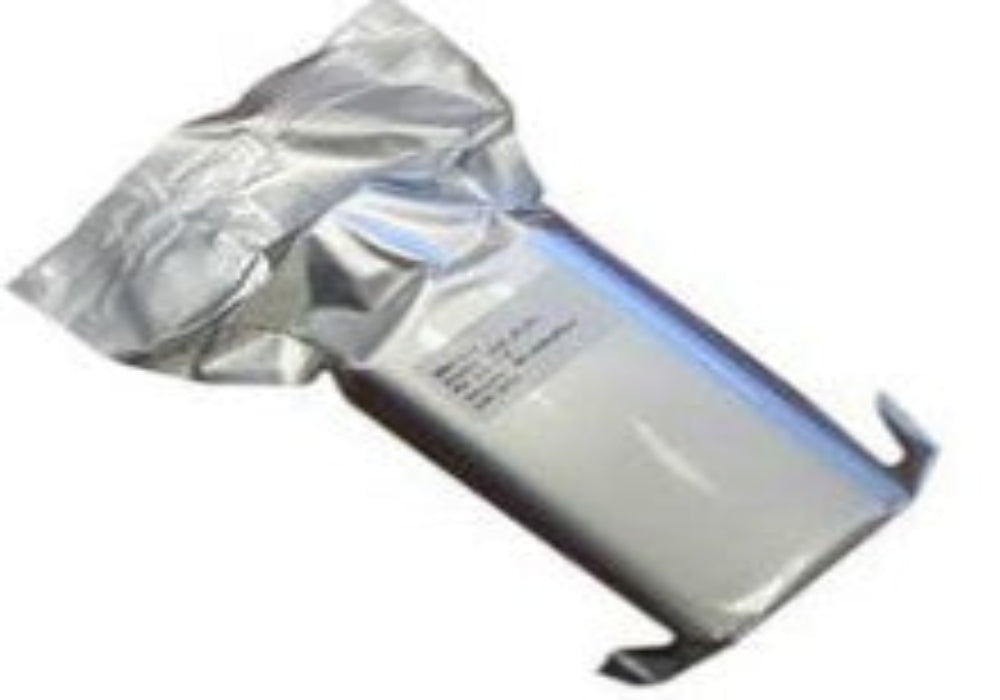

Kuraray Type2 Hard Carbon for Sodium Ion Battery Anode, 200g/bag, SIB-KTHC

€297,85

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Kuraray Type2 Hard Carbon for Sodium Ion Battery Anode, 200g/bag, SIB-KTHC

MTI

With its excellent cycling performance, hard carbon can be used as anode material for sodium-ion batteries. EQ-SIB-KTHC provides ?300 mAh/g first discharge capacity and ?90 % first discharge efficiency.

Specifications:

Package  200g/bottle (kilogram scale is also available upon request)
Particle Size Distribution D50: 5 um
Specific Surface Area 6.0 m2/g
True Density 1.48 g/ cm³
Layer Distance 0.38nm
Crystal Size 1.1nm
First discharge capacity(Li/Li+) 350mAh/g

First discharge efficiency(Li/Li+)

 88%

First discharge capacity(Na/Na+)

                        300mAh/g

Battery Compositons:
   (1) Active materials : PVDF = 94:6,   loading density: 6 mg/cm2.
   (2) Counter electrode: Soidum metal (half cell)
   (3) Electrolyte: 1.5 M NaPF6 in EC/DMC/EMC = 1/2/2

Charging/Discharging Conditions:
    (1)) Charging (CCCV mode):   CC: 0.1 mA/cm2 to 0 V,   CV: 0 V to 0.02 mA
     (2) Discharging (CC mnode): CC: 0.1 mA/cm2 to 1.5 V
First discharge efficiency(Na/Na+)     90%
 Material Safety Data Sheet
  • If you have purchased an MTI product, look for GHS elements of pictograms, signal word hazard phrases, codes, etc. Please click to download SDS Information.
Application Notes:
  1. Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
  2. Please keep the powder in a vacuum box to avoid moisture.
