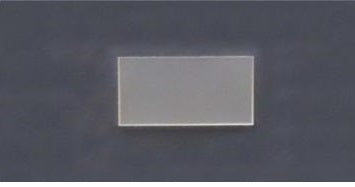

KTaO3, (100), 10 x 5 x 0.5mm, 2sp

• Single crystal KTaO3
• Orientation: (100) +/0.5^o      Edge // <001> & <010>
• Size: 10 mm x 5mm x 0.5mm
• Polish: two sides polished
• Surface roughness: < 5A

Typical Properties

            Molecular weight:                                               268.04

            Crystal Structure:                                                Cubic, Perovskite, a = 3.989 Angstroms

            Melting point:                                                      Does not melt congruently.

            Density:                                                                7.015 g / cc

            Thermal conductivity:                                   10-20 w/m.k at 300k

            Refractive index:                                                  2.14

            Sellenmeyer equation:                                        ?_o² -1 =3.591?² / (?² -0.193) ² )

                                                                                           (? in µm, from 0.4 -1.06 µm )

           Crystal growth method:                                      Top seed flux growth
