MTI  |  SKU: KSL-1200X-JS

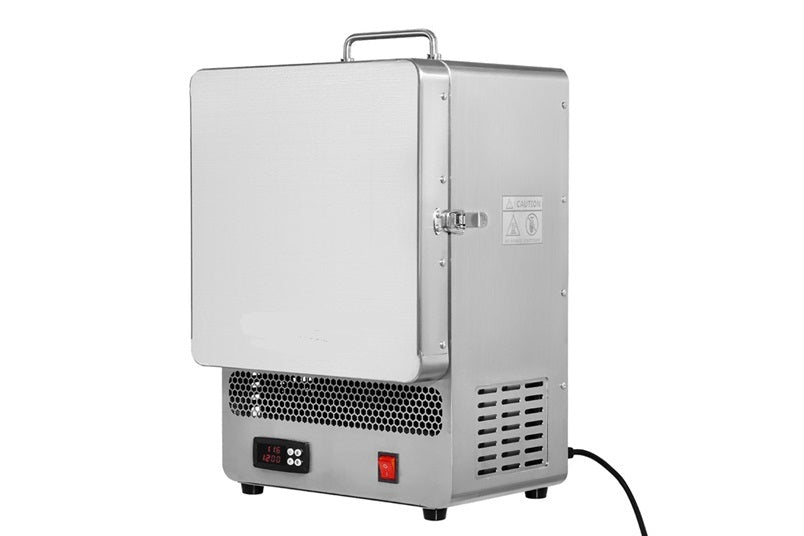

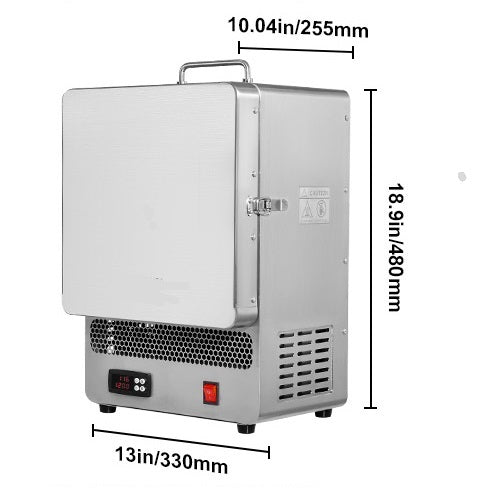

1200oC Economic Box Furnace (6"x 6"x5" , 3 liter, 110V) with Programmable Controller- KSL-1200X-JS

€1.620,82

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1200oC Economic Box Furnace (6"x 6"x5" , 3 liter, 110V) with Programmable Controller- KSL-1200X-JS

MTI

SPECIFICATIONS:

Structure
  • High-purity alumina fiber insulation surrounding the chamber
  • SS 201 outside case
Chamber Dimensions
  • 6.1" x 6.1"x 5.5"
  • Capacity: 3.3 Liter
  • Heating element: Ni-Cr-Al resistance wire
Power
  • Voltage: 110 - 120VAC, Single Phase 50/60 Hz
  • 1500 W, (15 Breaker required)
  • Power cable with US plug ( You can plug in power in the wall)
Operating Temp Range
  • 1200°C < 30 minutes
  • 100-1100°C continuously
Stability at 1000 °C +/- 1.0 °C
Uniformity at 1000 °C +/- 2.0 °C
Max. Heating Rate 30°C/ min Max
Thermocouple K type with a standard plug: 3" Length, 3mm OD.
Temperature Controller
  • The digital temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
