MTI  |  SKU: KSKSL1800ML

Kanthal Super 1800C MoSi2 Heating Element -330mm L - for GSL-1700X Furnace - KSKSL-1800-ML-LD

€914,25

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

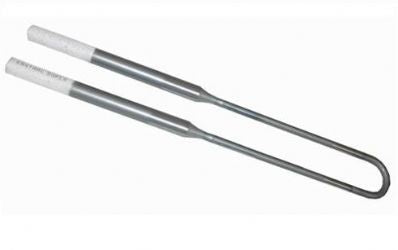

Kanthal Super 1800C MoSi2 Heating Element -330mm L - for GSL-1700X Furnace - KSKSL-1800-ML-LD

MTI

Specifications
  • Materials: MoSi2
  • Max. surface temperature: 1800°C
  • Working furnace temperature: 1750°C
  • A (Distance between two shanks) : 30 mm (1.18")
  • D1 (Terminal Diameter) : 12 mm (0.47")
  • D2 (Heating Zone Diameter): 6 mm (0.23")
  • L1 (Terminal Length): 180 mm (7.08")
  • L2 (Heating Zone Length): 150 mm (5.9")
Applications
Installation When installing a heating element into furnaces, a separator should be placed between the two shanks of the heating element before hanging the element inside the furnace chamber.  The proper separator width should be selected to fit the shanks smoothly and avoid damage to the element.
Warning
  • Exercise extreme caution to not apply any stress on the elements during installation. Heating elements are very brittle and could break if the separator is too wide or if too much pressure is applied to them.
  • Please replace all old heating rods when you repair your furnace due to old heating elements may have different resistance from the new one
Inspect your delivery:
  • Please check the package for damages before accepting delivery.
  • Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.
No Warranty:
Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.
