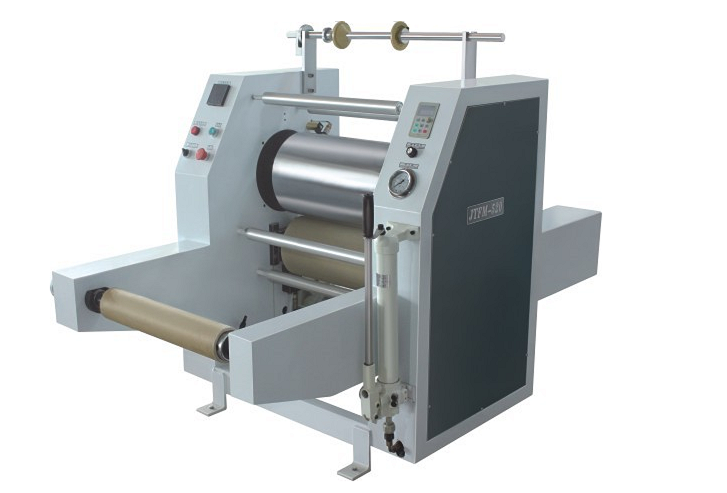

Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380

JTFM380 DC6 is a 130°C max. double-sided laminating machine, which can apply pressure by the built-in manual hydraulic pump up to 1200 Kg force with optional widths, of 340mm, 480 mm, and 1000 mm. It is an excellent tool for research on multilayer LCP, flexible electronic devices, and solid-state Li-Ion batteries.

SPECIFICATIONS:

Model	JTFM380	JTFM520	JTFM 1050
Laminating Width	340mm Max	480mm Max	1000 mm Max
Laminating Width	3 mm Max
Roller diameter	?192×380mm	?192×520mm	?216×1050mm
	The top roller is made of A3 Steel and the bottom roller is made of high-temperature rubber Only the top steel roller is heated Both rollers made of SS304 are available upon request
Laminating Speed	0.5-30m/min	0.5-30m/min	0.5-30 m/ min
Winding motor	DC motor with tension-controlled
Laminating Temperature Range	60-130°C	60-130°C	60-130°C
Max. Pressure	Pressure is applied by a manual hydraulic pump up to 1200 Kg with a pressure gauge Pressure gauge vs. the force applied to the roller as below  Gauge Pressure (MPa 2 4 6 8 10  Force applied to the rollers (Kg) 240 360 720 960 1200 Optional: You may use an electric oil pump to achieve automatic pressure setting up to 15 MPa as the link below
Power	220VAC +/- 10% , Single phase, 50/60Hz, 5kW	220VAC +/- 10% , Single phase, 50/60Hz, 7kW	220VAC +/- 10%, Three phases, (single phase is available with a boost frequency converter), 50/60Hz, 7 kW
Compliance	NRTL or CSA certification is available upon request at the extra cost
