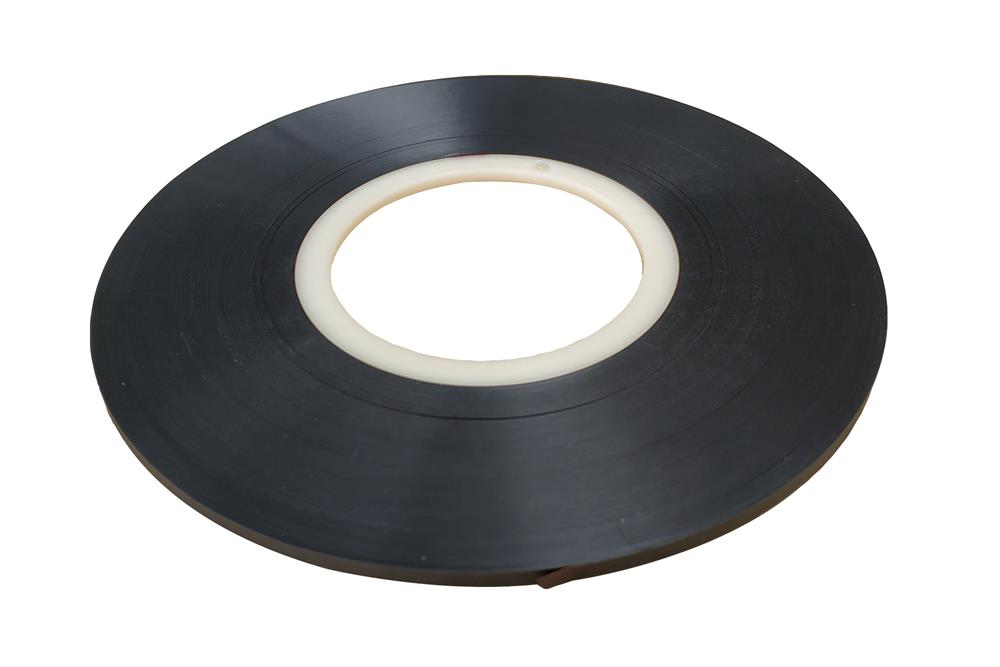

Hot Melt Adhesive (Polymer Tape) for Heat Sealing Pouch Cell Tabs (200m L x 5mm W x 0.1mm Thickness) - PLiB-HMA5L200
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
Hot Melt Adhesive (Polymer Tape) for Heat Sealing Pouch Cell Tabs (...
Hot Melt Adhesive (Polymer Tape) for Heat Sealing Pouch Cell Tabs (200m L x 5mm W x 0.1mm Thickness) - PLiB-HMA5L200
MTI
*MTI sells tabs (4mm, 5mm, 8mm and 30mm) with this sealant and Aluminum lamination film for immediately use, please kindly order from here. Click here to download MSDS
Specifications
Item |
Description |
Color |
Black |
Thickness |
100 um |
Width |
5mm |
Length |
200m for 1 roll |
Material |
Enhanced Sulfurized Polymer Resin Material (3 Layers Lamination) |
Outside Layers (Both Sides) Thermal Softening Index |
116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Outside Layers (Both Sides) Thermal Melting Index |
135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Softening Index |
145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Melting Index |
175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Removal Strength from Tab |
> 15N/15mm |
Removal Strength from Al Lamination Film (Cell Case) |
> 35N/15mm |
Resistance to LiPF6 Solution (1:1:1) |
No Change in the Solution @ 85ºC*24 Hours |
| Packing | Sealed in vacuumed Al bag when shipping |
| Manual & Video |
Click the video below to see how to use MTI's heat sealer MSK-140 to seal the tab onto pouch cell cases by this adhesive (in video, we call it polymer tape):   |
