MTI  |  SKU: FL152KF40HL

Hinged Type Vacuum Sealing Assembly for 6" (152 mm) dia Processing Tube with KF-40 Vacuum Port -FL152KF40H

€0,00
Left, right or both sides

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Hinged Type Vacuum Sealing Assembly for 6" (152 mm) dia Processing Tube with KF-40 Vacuum Port -FL152KF40H

MTI

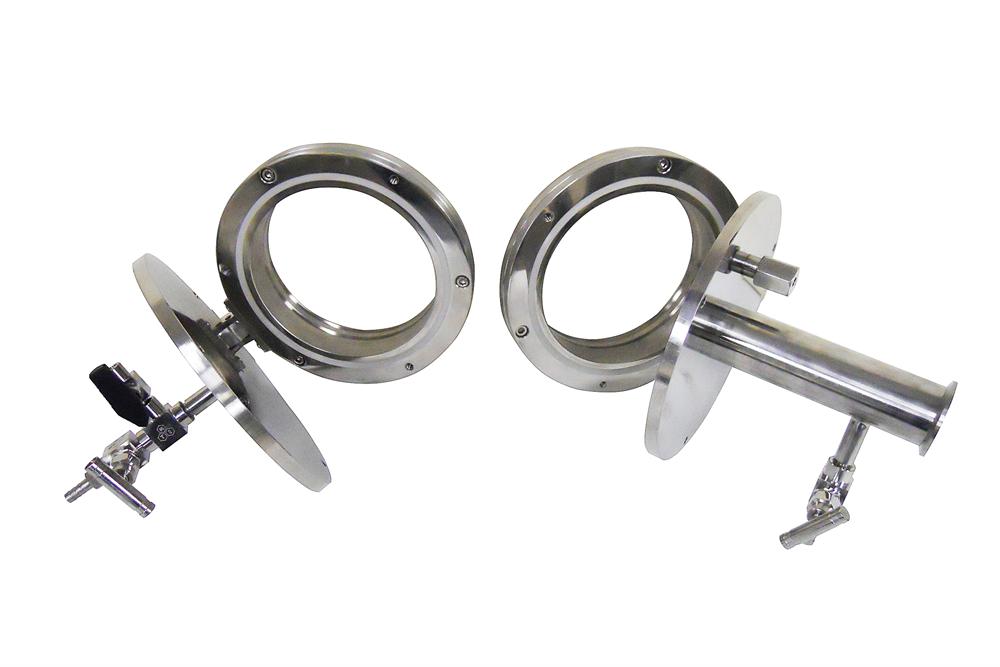

This is a pair of smart sealing assemblies for tube vacuum furnaces to tighten both ends of OD 152 mm (6") diameter tubes without any welding and gluing.

SPECIFICATIONS
Vacuum Level


Features
  • Made of Stainless Steel with double high-temperature silicon O-rings on each flange.
  • The left side flange has two gas in/outlet with two-needle valves
  • The right side flange has one KF-40 port and one needle valve 1/4" hose connector
  • Seal tubes by tightening screws on the flange without any welding and gluing.
  • Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe.


Optional Parts
Dimension



 Attentions
  • Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melting the silicone O-ring. You may order a ceramic block in related products
  • Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
  • It is necessary to provide solid weight supports to the flange if it is mounted on the end of the tube. MTI supplies height-adjustable flange weight support, please click the picture in below to order:


Options		 Click here to choose flanges for tubes from 1"  to 11"                        Vacuum Pump & High Vacuum Station
Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes                                                      Vacuum pump and high vacuum station
