High Vacuum Plasma-enhanced Chemical Vapor Deposition (CCP type) - VTC-PECVD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

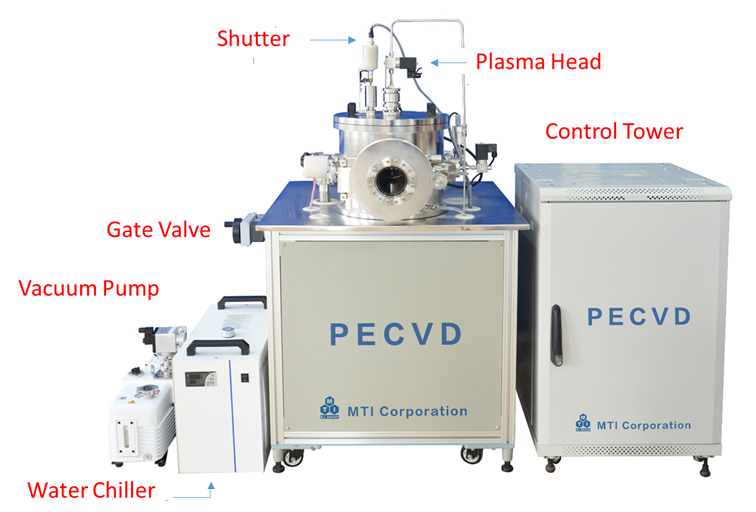

High Vacuum Plasma-enhanced Chemical Vapor Deposition (CCP type) - VTC-PECVD

MTI

VTC-PECVD is a CCP type  ( Capacitively Coupled Plasma) plasma-enhanced chemical vapor deposition (PECVD) system with a high vacuum chamber. It is designed for plasma-assisted thin-film coating at lowered temperature (200 ~ 500°C), compared to the normal deposition at 700~950°C. The high vacuum chamber also provides a clean environment which greatly improves the film size, uniformity, and film quality.

SPECIFICATIONS

Power
  • Single-phase 208 - 240 VAC 50 / 60 Hz
  • 4000 W
Source Power
  • One 300 W, 13.56 MHz frequency RF power source with auto coupling.


PECVD Growth

  • 100 mm Dia. double layer shower head with RF source for 4" wafer

  • Two precision mass flow controllers (MFCs) for two types of working gas
    • Flow rate: 0 – 100 mL/min adjustable on the touch screen control panel
  • Motorized butterfly valves allow a stable working deposition pressure from 0.1 torrs to 1 torr



Vacuum Chamber
  • Made of 304 stainless steel
  • Dimension: Dia 300 mm × 300 m H
  • Ultimate vacuum: 6E-7 torr
  • Pumping time: <6E-6 torr after 40 min pumping with turbopump
  • Leak rate: 3.8E-9 torr L/s
  • Viewport: 100 mm dia. glass
  • Fast load-lock door for quick sample loadding and retrieval.

Vacuum Pump
  • Turbo Pump: 700 L/s Pfeiffer turbo pump
  • Backing Pump: 240 L/min (4L/s) rotoray vane pump




Sample Stage
  • The sample holder is a rotatable and heatable stage made of the ceramic heater with copper cover
  • Sample holder size: 100 mm Dia. for. 4" wafer max
  • Rotation speed: 1 - 20 rpm adjustable for uniform coating
  • The holder temperature is PID controlled from RT to 500 °C max with an accuracy of +/- 1.0 °C
  • Clearance: 15 ~ 65 mm between sample stage and plasma head

Water Chiller
  • One digital temperature-controlled recirculating water chiller is included. (Click picture to see details)
    • Refrigeration range: 5~35 °C
    • Flow rate: 16 L/min
    • Pump pressure: 14 psi
    Gas delivery system
    (optional)
    • 2- 9 channel gas mixing and delivery system is available as an option ( Pic. 1)
    • Vapor gas delivery device is available upon request (Pic. 2&3)
    • Programmable software for customized recipes is available based on customer design
    •  Pic. 1Pic. 2Pic.3

    Net Weight of Coater
    • 160 kg

    Dimensions
    •

    Compliance
    • CE approval
    • NRTL Certification (UL 1450) is available upon request at an extra cost

    Warranty
    • One year limited warranty with lifetime support
