MTI  |  SKU: PCV300C

High-Density Polyethylene Containers for Vacuum Planetary Centrifugal Mixer - PCV-LD

€113,85

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

High-Density Polyethylene Containers for Vacuum Planetary Centrifugal Mixer - PCV-LD

MTI

The high-density polyethylene containers are used for the planetary centrifugal vacuum mixer MSK-PCV-300-LD. Please select the container sizes from the options.

SPECIFICATIONS
Mixing
  • Planetary Centrifugal Vacuum Mixing
    • The centrifugal force of rotation and revolution induces convection, homogenizing the materials
    • With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials

Containers and Adapters      Please choose the desired container and the adapter from the option bar.
  • Option 1: includes one 300ml container with gas vent, made of high-density Polyethylene or PTFE
  • Option 2: includes one 100ml adapter made of high-density Polyethylene or PTFE
  • Option 3: includes one 100ml container with gas vent, made of high-density Polyethylene or PTFE
  • Option 4: includes one 100ml adapter and one 30ml adapter made of high-density Polyethylene or PTFE
  • Option 5: includes one 30ml container with gas vent, made of high-density Polyethylene or PTFE
  • Option 6: includes one 10ml container adapter, made of high-density Polyethylene or PTFE
    Note: Both 30ml and 100ml adapters are needed for using the 30ml containers. Please click the pictures below for more detail.

        100ml Container        30ml Container      3x10ml Container
Dimensions

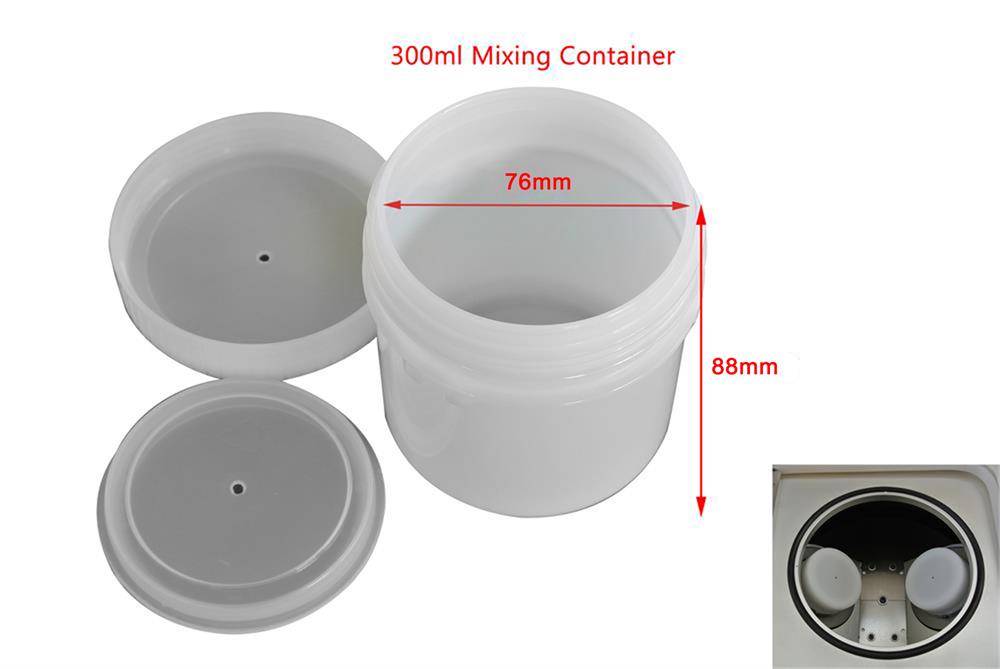

  • 300ml containers: 76mm (O.D.) x 88mm (Height)
  • 100ml containers: 60mm (O.D.) x 57mm (Height)
  • 30ml containers: 40mm (O.D.) x 35mm (Height)
  • 100ml adapters: 83mm (O.D.) x 61.75mm (I.D.) x 35mm (Height)
  • 30ml adapters: 68mm (O.D.) x 40mm (I.D.) x 28.5 (Height)

          300ml Container     100ml Container    30ml Container       100ml Adapter         30ml Adapter
Maximum Mixing Volume and Weight
  • Container Max Sample Volume Max Sample Weight Max Gross Weight (Container Included)
    300 mL 150 mL 140 g 200 g
    100 mL 50 mL 45 g 80 g (adapter not included)
     30 mL 15 mL 12 g 20 g (adpater not included)
  • Attention: Sample material overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading the sample
Application Notes
  • Always use the mixer on a level & stable surface for best performance and maximum safety
  • Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive, poisonous material! Check the chemical resistance of the container with the different materials before loading the sample!!!
  • Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration are observed
  • Use a digital balance to make sure the sample loading is balanced before mixing
  • Double-check if the containers are mounted correctly and securely before mixing
  • Do not open the cover lid until the rotation has completely stopped! Do not retrieve the containers and/or put hand close to the mixing fixture while the rotation has not completely stopped!
  • Only use the included containers for the mixing operation!
