MTI  |  SKU: G1500HE368

1500C SiC Electric Heating Element (368mm L) - GSL1500-HEL-368

€120,41

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1500C SiC Electric Heating Element (368mm L) - GSL1500-HEL-368

MTI

1500C SiC Electric Heating Elements are used in applications ranging in temperature from below 600oC up to 1500 oC in both air and controlled atmospheres, although the type of atmosphere used will determine the maximum recommended element temperatur

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500 oC
  • Continous working temperature 1500oC
  • Replace heating elements for MTI GSL-1500-50X   tube furnace only ( each furnace has 4 heating elements rods)

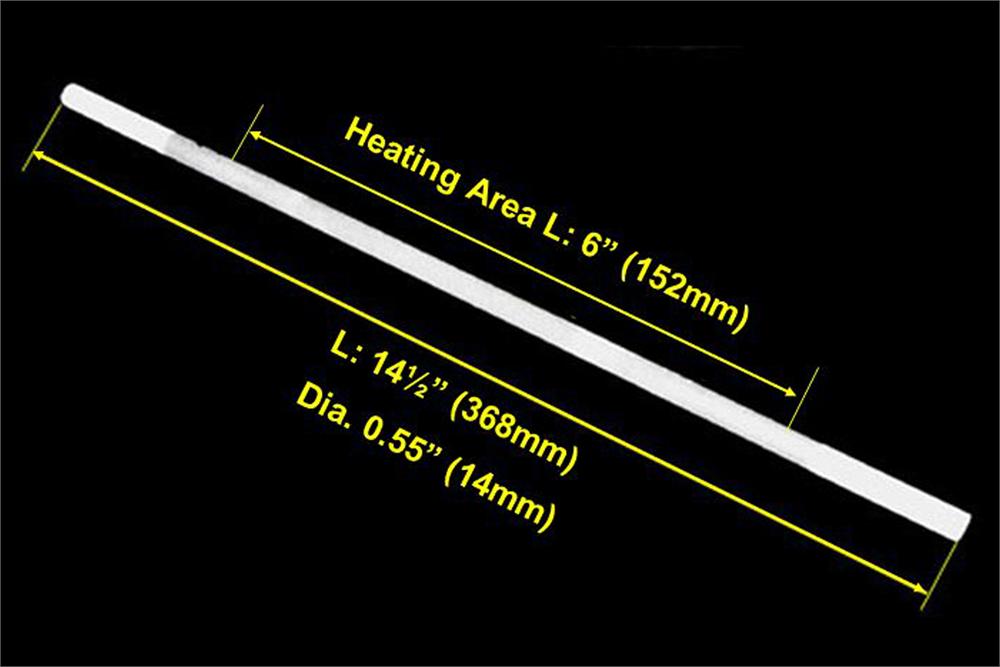

  • Dimension:
    0.55"(14mm) Dia.
    6" (152mm)  heating zone
    14½” (368mm)  overall length
  •    Installation of the SiC rods
  • Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
