GSGG - Gd3Sc2Ga3O12- ( 111) orn. 10x10x0.5mm, 1sp --- GSGG-Sc-c101005S1

Sc doped GGG  single crystal, e.g. substituted gadolinium gallium garnet is grown by CZ method .  Sc doped GGG is  a good magneto-optical crystal and is excellent substrate for for growing bismuth-substituted iron garnet epitaxial films

• Composition:   Gd3Sc2Ga3O12

• Size: 10 mm x 10 mm x 0.5 mm
• Orientation: (111) +/-0.5°
• Polish:   one side EPI polished
• Surface Roughness:   < 10A by AFM 5x5 microm area

Composition	Gd3Sc2Ga3O12
Crystal Structure	Cubic:   a =12.554 Å ,
Melt Point	~1730 oC
Density	~ 7.09   g/cm3
Hardness	~ 7.5 ( mohns)
Refractive index	1.95
Dielectric constant	30
Dielectric loss tangent (10 GHz)	ca. 3.0 * 10_4
Crystal Purity	> 99.99%
Crystal growth method	Czochralski
Crystal growth direction	<111>

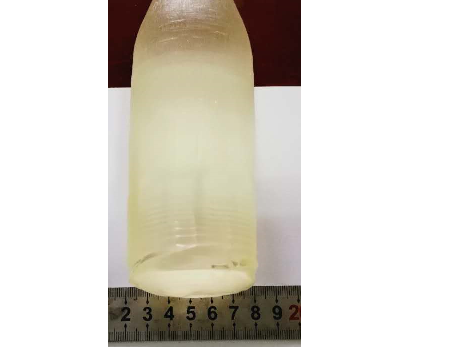

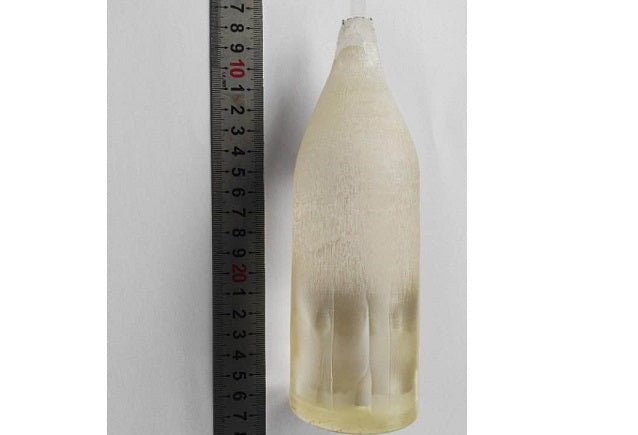

Crystal  Color
XRD
